100 - 240v UL FCC 60W Wall Mount AC DC Power Adapters 24V 2.5A Power Supply
100 240v CE GS RoHS UL FCC 60W AC DC adapter 24V 2.5A Power Supply
Production description
AC to DC 24V 2.5A power adapter input 100 240v ac 50/60hz adapter 220v 24v
Input and output:
| Input voltage: | 100-240VAC;50/60Hz.1.6A. |
| Output power: | 24Vdc 2.5A 60W |
| Average Efficiency: | 80% Min.Energy Level VI is available |
| Ripple and Noise(Max): | 120mV p-p(adjustable) |
| Turn on delay time: | 3 second Max.at 115Vac input and output Max.load. |
| Rise time: | 40 mS Max.at 115Vac input and output Max load. |
| Hold up time: | 5 mS Min.at 115Vac input and output Max.Load |
| Dimension: | 120*53*32mm |
DC cable:1.2M/1.5M/1.8M or more customizable

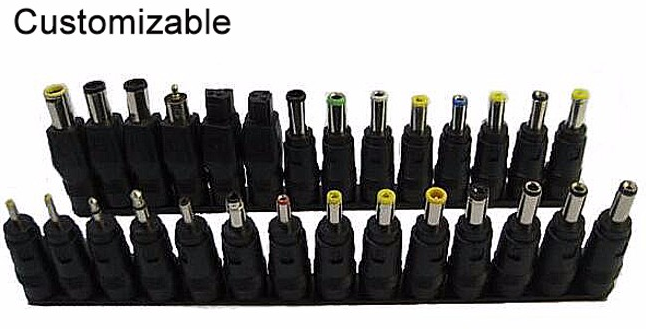

DC connector:5.5*2.1,5.5*2.5 or more customizable
Protection of 24v 2.5a power adapter:
Short circuit protection.Over current protection.Over voltage protection
24v 2.5a adapter environmental requirements:
| MTBF: | MIL-HDBK-217F , Full load, 25 ℃, more than 50000 Hrs |
| Operating Temperature: | 0℃ to 40℃,Full load, Normal operation. |
| Storage Temperature: | -20℃ to 80℃ with shel |
| Relative Humidity: | 5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating |
adapter 220v 24v meet EMI standard:
<1>.Fcc part15 class B rules
<2>.EN55022 class B rules
<3>.GB9254-2008,GB17625.1-2012
Meet UL/CUL-(UL60950-1),PSE-J60950,TUV/GS-(EN60950-1),CCC-(GB4943) AS/NZS: 60950-1
Terms:
| Payment term: |
T/T,L/C,Paypal. 30% payment paid in advance.70% balance paid before shipping |
| Delivery time: | 3-5 days for samples.15-18 days for mass production order |
| Package: | PE bag+cardboard (50pcs/carton) .White box optional |
| Warranty: | 12 months or 24 month optional |
