CREE 3535 150W Outdoor SMD LED Street Light Retrofit With High Brightness

Price Negotiable
Price: negotiable
MOQ: 5pcs
Delivery Time: 3~10days
Brand: OEM
Product Description

CREE 3535 LED LED Light Outdoor SMD Street Light Retrofit 150W 5 Years Warranty



Detail Feature of Our Led Street Light:

A. Superior die-casting aluminium housing, more durable and long lifespan.

B. Waterproof high IP65, with universal lamp size making it easy to assemble.

C. Excellent Epistar chip, energy saving with wide beam angle 135*85°.

D. Stable running, saves up to 70% energy, CRI ≥75

E. Widely used in arterial road and secondary main road and etc..

F. Good corrosion resistance, improve driver cycle life, 5 years warrant

G. Famous led brand : CREE 3535 led, high lumens 120Lm/W.



Advantages

1. High Power, High Lumen, High Quality;

2. Save 80% more energy compared with traditional lighting fixtures.

3. Easy to install and use, secure and reliable.

4. No UV or RF interference, no mercury or lead.

5. Light body is made by good quality aluminum alloy material with painting or anodic treatment on surface, exiguity and unique designs, excellent heat dissipation.

6. High Quality, high efficiency, high CRI, high luminous flux.

7. Long Life Span >50000 hours.

8. High brightness, low consumption, green for environment.

9. Protection grade is IP65.

10. OEM/ODM Product is acceptable.



Specification

Product code PS-L2-LDA-50W
Power 50W±10%
Luminous ux ≥6000LM
LED CREE 3535
Driver MeanWell/SoSen
Voltage AC 90-305V
Luminous Efficiency 120Lm/W
CRI ≥75
CCT 3000K/4000K/5000K/6000K/7000K
PF >0.90
Beam Angle 135*85°
Material Al1070 + Al6061
Life Span 5 Years
IP Grade IP65
Storage Temperature -40~80℃
Working Temperature -20 ~40℃
Replaceable 50W
N.W.(Kgs) 7.10Kg

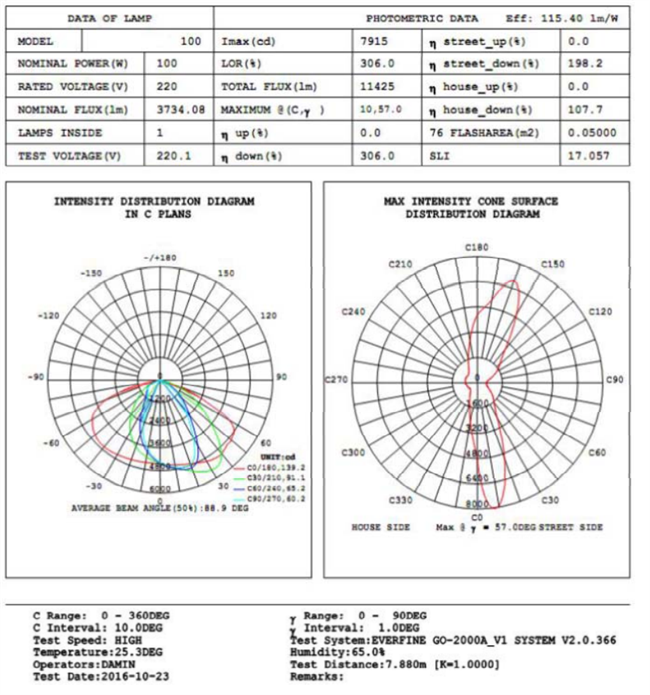

Light Distribution Curve

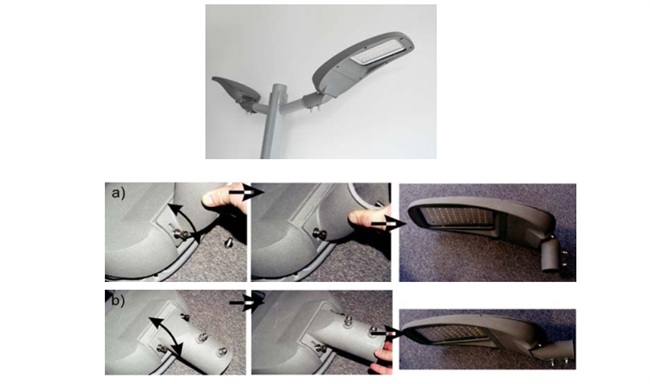

Pictures

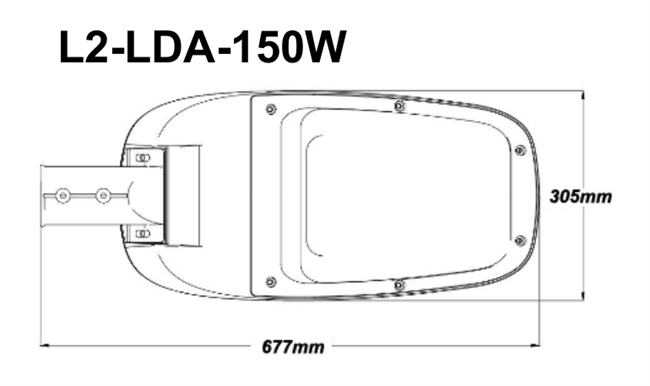

Dimensions(mm)

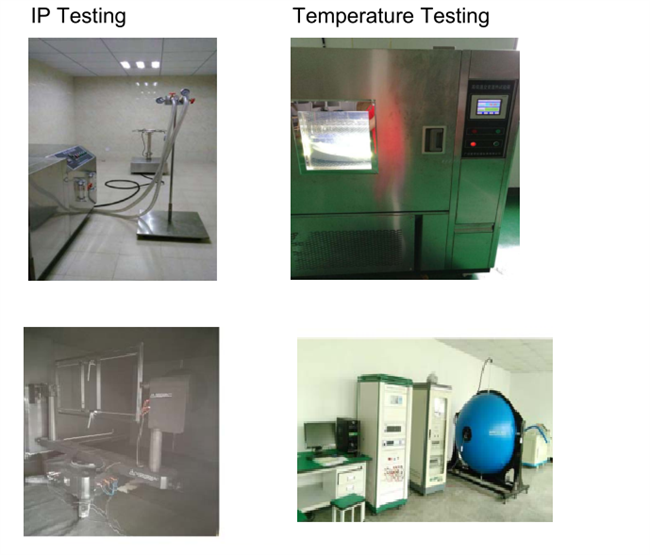

Quality Control

Lighting performance test: Including Color temperature test, CRI test,lumen test, light efficiency test, Power factor test, and some electrical parameter test .
