20lm / W Outdoor 180W High Power LED Street Light With Good Heat Dissipation
CE ROHS 120lm / W Outdoor High Power Led Street Light 180W LED Street Light
Quick Details:
Light Source:OSRAM
Item Type: Street Lights
Input Voltage(V): 100-277V
Lamp Power(W): 180W
Lamp Luminous Flux(lm): 19800LM
Lamp Luminous Efficiency(lm/w):120
CRI (Ra>): >70/80
Color Temperature(CCT): 3000/4000/5000/6000K
Working Temperature(℃): -40 - 50
Working Lifetime(Hour): 500000
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: CE, FCC, RoHS
Warranty(Year): 5 years
Specifications
| Product code | PS-LDB-180W |
| Power | 180W±10% |
| Luminous ux | ≥19800LM |
| LED | OSRAM |
| Driver | Meanwell(ELG) |
| Voltage | 100-277V |
| Luminous Efcacy | 120Lm/W |
| CRI | ≥70/80 |
| CCT | 3000K/4000K/5000K/6000K/7000K |
| PF | ＞0.90 |
| Beam Angle | 120° |
| Material | Al1070 + Al6061 |
| Life Span | 5 Years |
| IP Grade | IP65 |
| Storage Temperature | -40~80℃ |
| Working Temperature | -20 ~40℃ |
| Replaceable | 180W |
| N.W.(Kgs) | 7.10Kg |

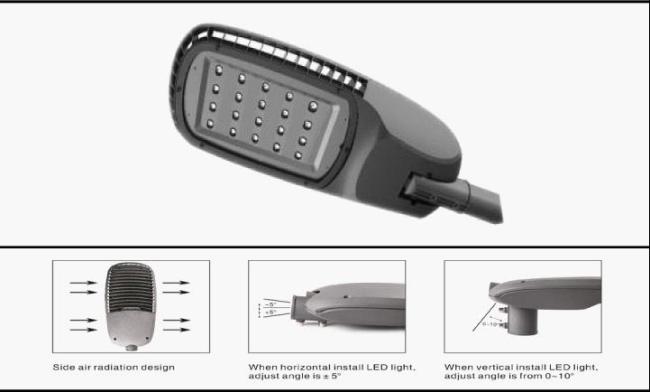

Product show

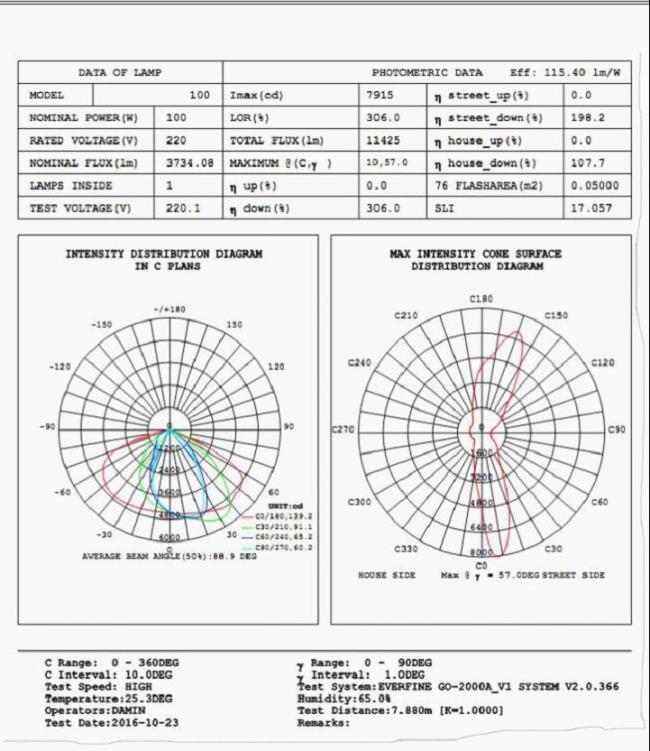

Light Distribution Curve
Quality Control

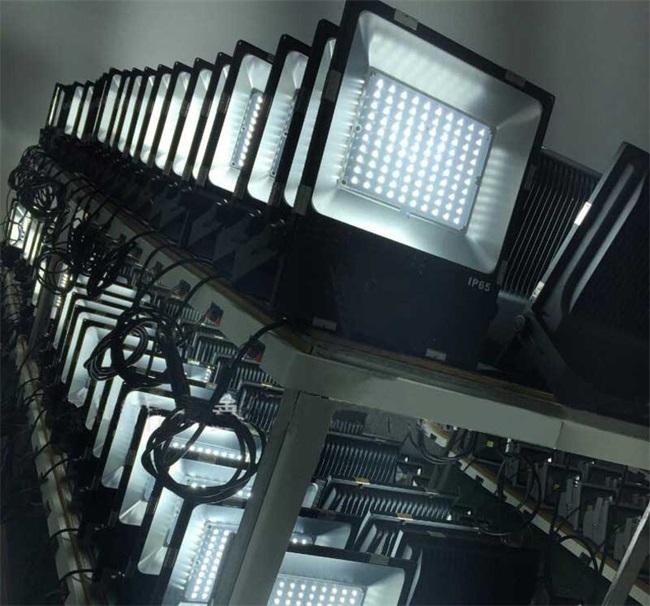

Aging testing: Every single item will do the aging test. And it will be last for 8 hours

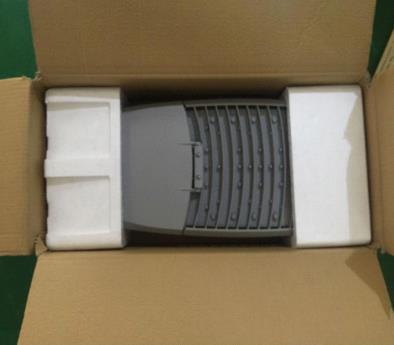

Packaging and transportation
- Be careful with the street lights optical lens;
- Carton neutral packing;
- Take precautions against shock and bump during the transportation.

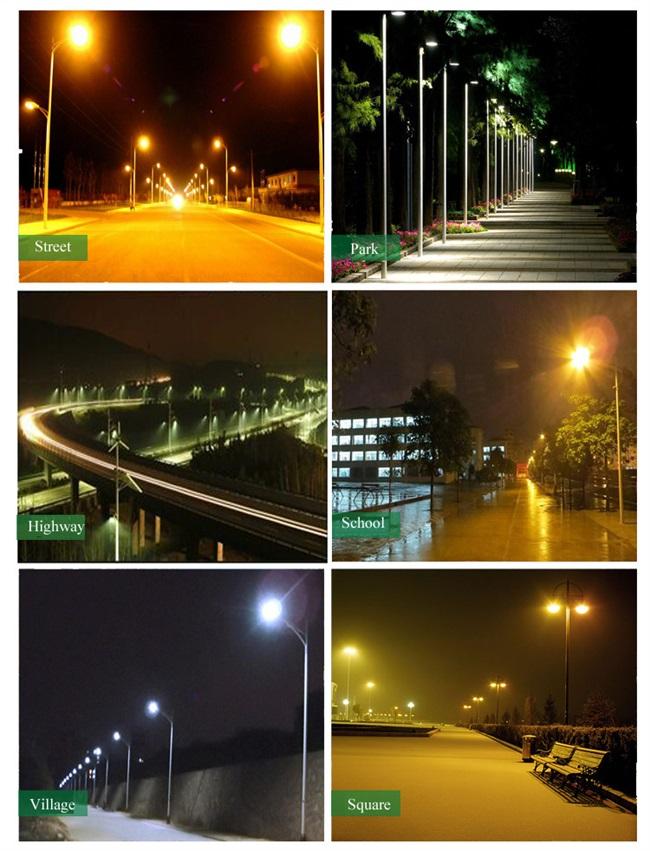

Applications
