30W 40W 60W 80W Waterproof IP65 Seamless Linkable Linear Light With 5 Years Warranty
30W 40W 60W 80W Waterproof IP65 Seamless Linkable Linear Light With 5 Years Warranty
Quick Details :
Part No. :PS-D029LPEFG-D
size: L572*W65*H58mm
Lamp Power(W): 30W /40W / 60W / 80W
Item Type: LED Seamless Linear Light
LED Light Source: Epistar 2835
Warranty(Years): 3
Lamp Luminous Efficiency(lm/w): 120lm/w -130lm/w (Customized)
CRI (Ra>): 80
Color Temperature(CCT): 3000 - 7000K
Working Temperature(℃): -30 - 55
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: 65
Certification: CE, RoHS, UL
Place of Origin: Guangdong, China (Mainland)
Brand Name: Phenson Lighting
Product Name: Led Linear Light
Application: supermarket/office/warehouse/school
Material: Alumimum + PC Cover
Beam angle:120 Degree
Feature :
High grade aluminum material, 30°/60°/90°/RL20°lens, IK07.
AC220-240V voltage input, PF＞0.9, standard power supply with CE approval.
LED by super-bright Epistar 2835, 120-130LM/W, efficient energy saving 70%.
No Flicking, RF interference, radiation-free, low power consumption, high strength, maintenance-free.

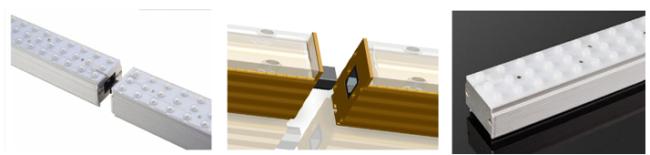

Seamless connect, 30-80W available, CRI＞80, 3/5 years warranty Option!
Suspended or surface mounted easy installation.
0-10V+PWM+PX dimmable for option.
Parameter :
| Model | Power | Size | Lighting efficency | CRI | LED Chip | PF | CCT |
| PS-D029LPEFG-D | 30W±5% | L572*W65*H58mm | 120-130lm/W | ＞80 | 66 pcs Epistar 2835 | ＞0.9 | 3000-7000K |
| PS-D030OPEFG-D | 40W±5% | L858*W65*H58mm | 120-130lm/W | ＞80 | 99 pcs Epistar 2835 | ＞0.9 | 3000-7000K |
| PS-D031PPEFG-D | 60W±5% | L1144*W65*H58mm | 120-130lm/W | ＞80 | 132 pcs Epistar 2835 | ＞0.9 | 3000-7000K |
| PS-D032TPEFG-D | 80W±5% | L1430*W65*H58mm | 120-130lm/W | ＞80 | 165 pcs Epistar 2835 | ＞0.9 | 3000-7000K |
Application :
Indoor use( living room / bedroom / kitchen / washroom )
School / University / Hospital / Hotel
Conference / Meeting room /Show room / Showcase 4)Commercial Complexes

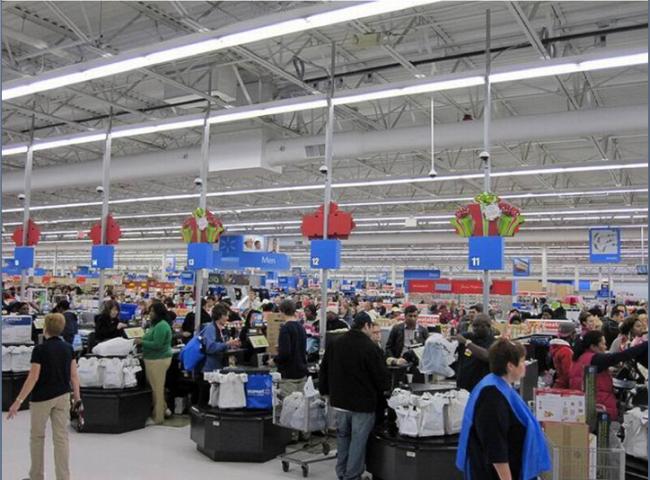

Factories / Plants / Warehouses / Offices 6)Super-market / Department store
Picture :
