Milky White 3D Digital Ball Max 1.44W SMD5050 RGB Pixel Led Ball 50mm DMX
Milky White 3D Digital Ball Max 1.44W SMD5050 RGB Pixel Led Ball 50mm DMX
Product description ,
1.Digital led pixel ball string for outdoor application.
2.Each pixel individually control.
3.20pcs per chain with 20 cm space (standard length) but it's could customization.
4.There is 6pcs super bright smd 5050 RGB LED inside of each lamp.
5.The housing material adopt PC plastic, high strength, impact resistance, anti-aging and UV protection.
6.Support DMX control protocol, signal synchronization, signal transmission distance, immunity to interference.
7.The string ball quantity and gap can be OEM to meet the customers projects requirements in different places.
| Part NO | PS-50RGBIP67-24V |
| Lighting Source | 6PCS SMD5050 RGB LED |
| Beam Angel | 360 degree |
| Operate Voltage | DC24V |
| Consumption Watt/M | 1.44 Watt (max), 0.24W/led |
| Diameter (mm) | 50 mm |
| Pixel pitch | 10cm, can be customized |
| IC chip | UCS1903 full color |
| Quantity | Standard 20 pcs /string |
| Waterproof Grade | IP65 |
| Lifetime | 50000H |
| Working temperature | -20℃-60℃ |
| Storage temperature | -30℃-80℃ |
Product images,

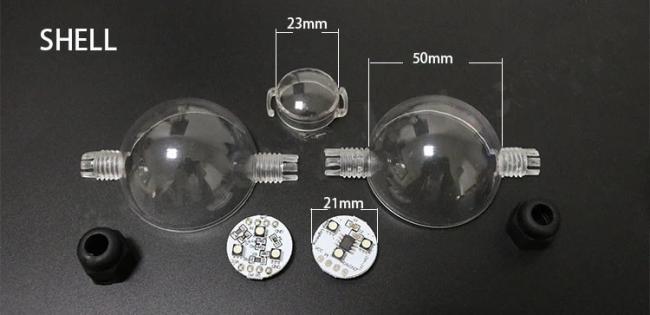

-50mm diameter PC shell

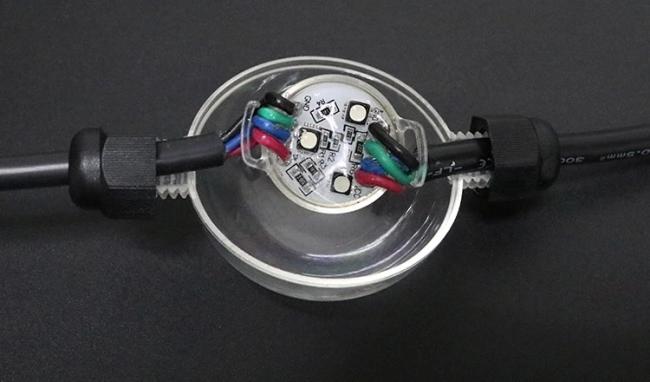

-360 degree lighting, 3pcs waterproof blacj SMD5050 rgb led on each side of the PCB
-23mm small PC shell for PCB, glue injection for the PCB module, triple waterproof protection

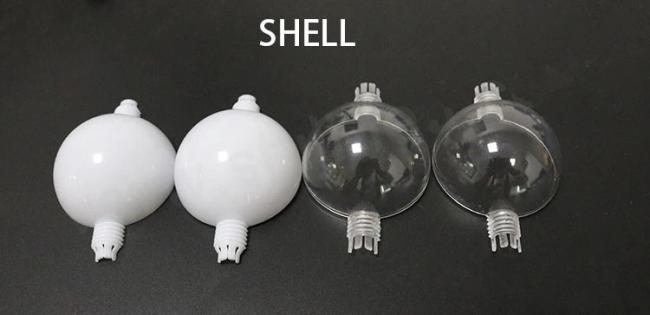

-White & Transparent cover color options
-Black 18 AWG waterproof wires, T connectors for power injection, which should purchase separetly
