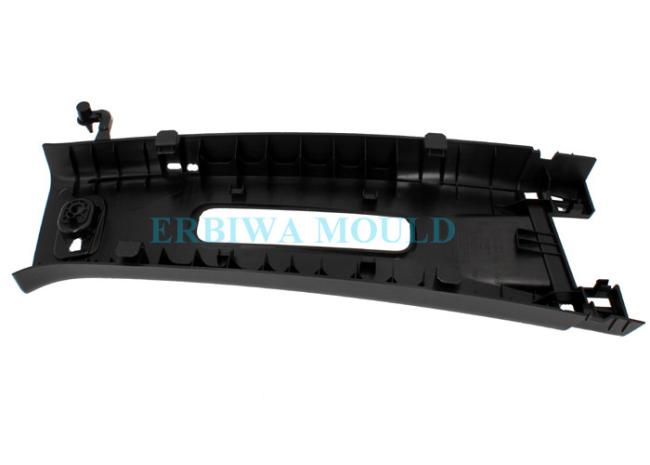

Hot Runner Car Parts Mold / Auto Upper Trim B Pillar For Fixing Safety Belt Honda With ISO Certification
High Precise Auto Upper Trim B Pillar For Fixing Safety Belt For Honda With ISO Certification
| Name | injection auto b-pillar mould |
| mould material | 45#,P20,H13,718,2738,NAK80,S136 etc. |
| mould base | DME, HASCO, MISUMI and LKM |
| Cavity | Single / multi |
| Runner | Hot / cold |
| Mould life | 45# :300,000-500,000 shots |
| P20: 500,000 shots | |
| 718: 700,000 shots | |
| Design software | UG,PROE,CAD and Catia etc. |
| Plastic material | PP,PE,ABS,PC etc. |
| Delivery time | 30-45 days |
| Specification | According to client’s requirements |
Auto Parts Mould
1.Samples/Drawing &Requirement from you
2.Mould design:we will Communicate&Exchange the opinion with you after you place order.
3.Material Purchase:Steel cutting and Mould base tooling.
4.Assembling.
5.Inspection of mould : following and controlling the tooling processing.
6.Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!
7.Your instruction &confirmation for shipment.
8.Ready made mould before packing.
Our Advantages
1. Professional technology support. We have over 30 senior molding engineers for your plastic molding inquiry.
2. High quality. The plastic automotive injection molding is made with good mold material to guarantee the long life, such as SKD61, NAK80,2344,S136,718H,738H,2312 and so on.
3. Precision machining. We have our own molding room with CNC, WEDM-LS and other advanced equipment, the precision machining will be offered for your high quality requirements.
4. Rich experience. We have made plastic automotive injection molding from 2003, and our products include lots kinds of automotive products.
5. Standard parts with HASCO,DEM, PUNCH, MISUMI, Dayton. You can keep maintenance easily in your own production.
Equipment Lists
| Equipment name | Qty(Set) | Model | Brand | Precision(μ) | Date of use(Year) | (x*y*z)mm |
| Miller | 1 | 8SS | TOPONE | 0.01mm | 2014 | 600*320*330 |
| Miller | 1 | SHCM-97A | GENTIGER | 0.01mm | 2016 | 650*350*360 |
| Grinder | 5 | SGM450 | SHUGUANG | 0.003mm | 2016 | 400*150*250 |
| Beam drill | 1 | Z305*16/1 | ZONJET | 1mm | 2016 | z=850 |
| Tapping machine | 1 | M3-M16 | SANWAVE | 1mm | 2016 | z=500 |
| Electrospark machining | 2 | cnc-edm-he130 | HANSPARK | 0.01mm | 2016 | 1300*600*400 |
| Electrospark machining | 1 | cnc-edm-he100 | HANSPARK | 0.01mm | 2016 | 1000*500*400 |
| Electrospark machining | 2 | cnc-edm-hp35 | HANSPARK | 0.01mm | 2016 | 350*250*300 |
| Wire-Cutting Machine | 1 | AQ360LS | SODICK | 0.005mm | 2010 | 360*250*220 |
| Wire-Cutting Machine | 1 | AQ550LS | SODICK | 0.005mm | 2010 | 550*350*320 |
| NCM miller | 1 | α-d14mia | FANUC | 0.005mm | 2016 | 500*400*330 |
| NCM miller | 1 | MXV1020 | YCM | 0.005mm | 2016 | 1020*520*540 |
| NCM miller | 1 | FV125A | YCM | 0.005mm | 2016 | 1270*520*540 |
| NCM miller | 1 | TV146B | YCM | 0.005mm | 2014 | 1400*620*630 |
| NCM miller | 1 | Hareford-1000 | HARFORD | 0.01mm | 2014 | 2000*1500*780 |
| NCM miller | 1 | TAKUMI | TAKUMI | 0.01mm | 2017 | 1600*1300*700 |
| CMM | 1 | INSPECTOR | HEXAGON | 0.002 | 2016 | 2000*1000*700 |
| Binary optics projector | 1 | MICROSCOPE | Micat | 0.002 | 2016 | 400*300*150 |
Packaging and delivery
Packaging process for each die before leave our factory
1.Painting: you can choose the colors accroding your requirements,such as black, green, yellow, blue......
2.Slushing oil: to protect the die surface avoid rust
3.PE film: keep the tool surface clean
4.Related documents: all the details for this die,such as structure drawing, instruction of operation, maintenance manual, inspection report, factory checking list...
5.Outer packaging: Plywooden case, exported standard.
6.Fastening: more stronger
Delivery:
1.Delivery on the spot, adjust for production
2.Shipped in 30—50 days after payment
