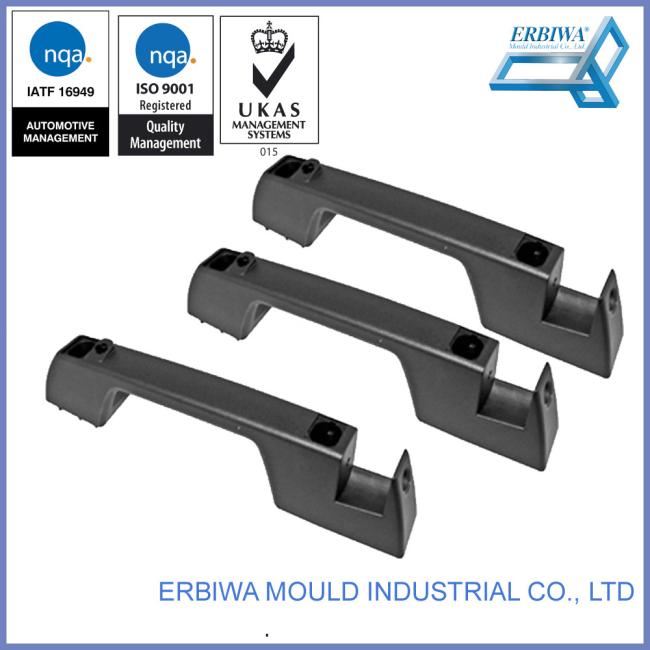

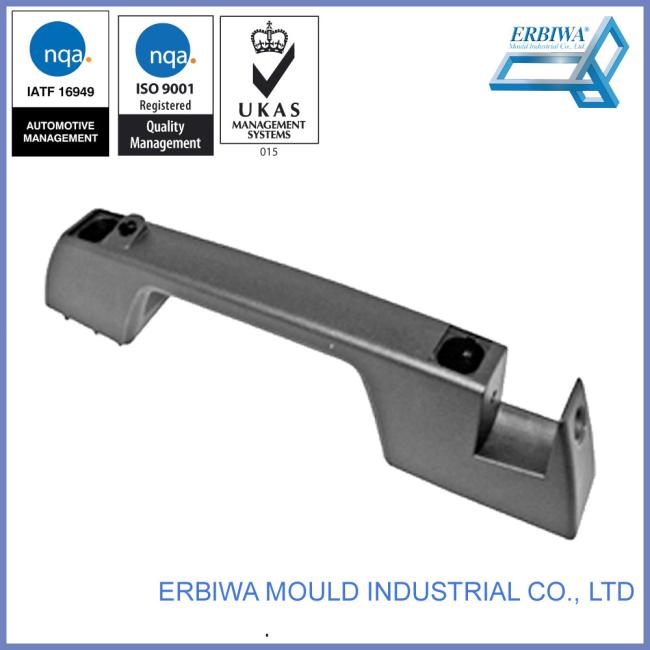

ABS Auto Trim Molding , Injection Molding For Car Decoration Parts
ABS Auto Trim Molding , Injection Molding For Car Decoration Parts
Product Description:
| Main Business | Mould design ,Tooling , manufacturering Injection plastic auto product , |
| Brand | Customized |
| Design Software | ProE, CAD |
| Mold build capability | Up to 15 Ton |
| Cavity | Single-Cavity ,Multi-Cavity |
| Certificate | ISO9001:2015 and SGS |
| Mold materia | 718H,P20,NAK80,S316,SKD61 etc. |
| Raw Material | PP,Pa6,Pa66,PPT,LCP,AS,ABS,PE,PC,POM etc. |
| Mould Structure | Insert Mould ,Over Mould ,Double color Mould etc. |
| Mould Base | HASCO ,DME ,LKM,JLS standard |
| Processing Craft | Milling ,Grinding,Drilling,Engraving ,EDM,Wire Cutting ,Polishing |
| Tolerance | ±0.02mm |
| Gate Type | Cold runner ,Hot Runner |
| Appearance finished | EDM ,High Polish,Mirror Polishing,Texture/Graning |
| Mould life | 30000 to 1000000 shots |
| Hardeness of steel | 18-56HRC |
| Delivery time | 2-8weeks(According to the structure) |
| Packing | carton /wooden packing or as your requirement |
| Delivery | EXW or FOB ShenZhen |
Erbiwa Intro:
Ningguang Mould have a wealth of experience in making plastic injection mould. It is a professional plastic mould factory in Dongguan, China. Our aim on international market, not only working for domestic market, Our engineer and quality assurance system guarantees customer satisfaction. Our highly skilled team of designers and toolmakers have the knowledge, experience and expertise to take your project right from conception through to delivery of the finished moulded components. We also have responsible measuring team, they will control the product dimension and keep tracking the mould processing.
Features:
- Capacity: Your design
- Good quality and competitive price
- Various color to choice
- blow molding processing
- Logo and label can be printed
- OEM is available,we can also manufacture products according to your picture or samples.
Documents for Mold Shipment
- Tool check-list.
- Steel certifications.
- Steel dimensions report.
- Mold tryout process sheet.
- Tool assembly drawing printings.
- Part drawing and latest dimensions report.
- CD contains 2D & 3D mold drawing, electrode data and all above information.
Erbiwa Equipment list:
Erbiwa have the latest molding and automation equipment, giving us the ability to compete at a global level.
Our scientific approach to mold building and processing give Erbiwa a competitive advantage that our customers can capitalize on.
| Equipment name | Qty(Set) | Model | Brand | Precision(μ) | Date of use(Year) | (x*y*z)mm |
| Miller | 1 | 8SS | TOPONE | 0.01mm | 2014 | 600*320*330 |
| Miller | 1 | SHCM-97A | GENTIGER | 0.01mm | 2016 | 650*350*360 |
| Grinder | 5 | SGM450 | SHUGUANG | 0.003mm | 2016 | 400*150*250 |
| Beam drill | 1 | Z305*16/1 | ZONJET | 1mm | 2016 | z=850 |
| Tapping machine | 1 | M3-M16 | SANWAVE | 1mm | 2016 | z=500 |
| Electrospark machining | 2 | cnc-edm-he130 | HANSPARK | 0.01mm | 2016 | 1300*600*400 |
| Electrospark machining | 1 | cnc-edm-he100 | HANSPARK | 0.01mm | 2016 | 1000*500*400 |
| Electrospark machining | 2 | cnc-edm-hp35 | HANSPARK | 0.01mm | 2016 | 350*250*300 |
| Wire-Cutting Machine | 1 | AQ360LS | SODICK | 0.005mm | 2010 | 360*250*220 |
| Wire-Cutting Machine | 1 | AQ550LS | SODICK | 0.005mm | 2010 | 550*350*320 |
| NCM miller | 1 | α-d14mia | FANUC | 0.005mm | 2016 | 500*400*330 |
| NCM miller | 1 | MXV1020 | YCM | 0.005mm | 2016 | 1020*520*540 |
| NCM miller | 1 | FV125A | YCM | 0.005mm | 2016 | 1270*520*540 |
| NCM miller | 1 | TV146B | YCM | 0.005mm | 2014 | 1400*620*630 |
| NCM miller | 1 | Hareford-1000 | HARFORD | 0.01mm | 2014 | 2000*1500*780 |
| NCM miller | 1 | TAKUMI | TAKUMI | 0.01mm | 2017 | 1600*1300*700 |
| CMM | 1 | INSPECTOR | HEXAGON | 0.002 | 2016 | 2000*1000*700 |
| Binary optics projector | 1 | MICROSCOPE | Micat | 0.002 | 2016 | 400*300*150 |
The displayed pictures is only for your reference,we can make various kinds of auto plastic injection mold according to your requirements. Contact Erbiwa today and begin enjoying the benefits of high quality and low price products.
