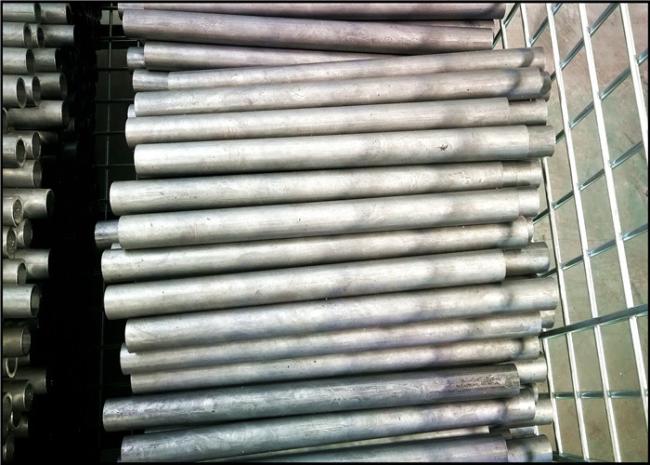

Military Field Automotive Steel Tubing 50mm Outside Diameter With Smooth Surface
Welded Cold Drawn EN10305-2 50mm Automotive Steel Tubing Cold Drawn Steel Pipe
Application:
for Auto industry
for machinery use
Oil Cylinder Tube
Motorcyle shock absorber
Auto shock absorber innder cylinder
Telescopic Cylinders
Size range
OD:6-80mm
WT:0.5-10mm
L:As requirements.
Supplying Steel Grade:
E155, E195, E235 E275, E355
| Steel Number | Quality Level | Thickness/mm | Deoxidize Method | C(%)≤ | Si(%)≤ | Mn(%)≤ | P(%)≤ | S(%)≤ |
| E185(Fe310) | 0 | - | - | - | - | - | - | - |
| E235(Fe360) |
A B
C D |
≤16 ＞16-25 ≤40 ＞40
|
N - - E NE NE GF |
0.22 0.17 0.20 0.17 0.20 0.17 0.17 |
- 0.40 0.40 0.40 0.40 0.40 0.40 |
- 1.40 1.40 1.40 1.40 1.40 1.40 |
0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
| E275(Fe430) |
A B C D |
≤40 ＞40 |
- E NE NE GF |
0.24 0.21 0.22 0.20 0.20 |
- 0.40 0.40 0.40 0.40 |
- 1.50 1.50 1.50 1.50 |
0.050 0.045 0.045 0.040 0.035 |
0.050 0.045 0.045 0.040 0.035 |
| E355(Fe510) |
C D |
≤30 ＞30 ≤30 ＞30 |
NE NE GF GF |
0.20 0.22 0.20 0.22 |
0.55 0.55 0.55 0.55 |
1.60 1.60 1.60 1.60 |
0.040 0.040 0.035 0.035 |
0.040 0.040 0.035 0.035 |
| Steel Number | Yield Strengh/MPa | |||||||
| ≤16 | ＞16-40 | ＞40-63 | ＞63-80 | ＞80-100 | ＞100-150 | ＞150-200 | ||
| E185(Fe310) | - | 185 | 175 | - | - | - | - | - |
| E235(Fe360) |
A B BNF C D |
235 235 235 235 235 |
225 225 225 225 225 |
215 - 215 215 215 |
215 - 215 215 215 |
215 - 215 215 215 |
195 - 195 195 195 |
185 - 185 185 185 |
| E275(Fe430) |
A B C D |
275 275 275 275 |
265 265 265 265 |
255 255 255 255 |
245 245 245 245 |
235 235 235 235 |
225 225 225 225 |
215 215 215 215 |
| E355(Fe510) |
C D |
355 355 |
345 345 |
335 335 |
325 325 |
315 315 |
295 295 |
285 285 |
Delivery Condition:
+C, +Lc, + SR, +A, +N
Production Method:
DOM, ERW+ Cold Drawn
ID Honing + Roller Burnish+ Skiving
Appearance:
The internal and external surface finish of the tubes is smooth, while the Weld Seam is somehow not visible or tangible.
The ID surface with roughness Ra≤4μm, the best ID smoothness we could reach Ra≤0.8μm
The inner surface can be measured and reported if this is requested by the purchaser before PO.
