High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection
High Tensile Stainless Steel Woven Rope Mesh with Excellent Flexibility for Architectural Safety Protection

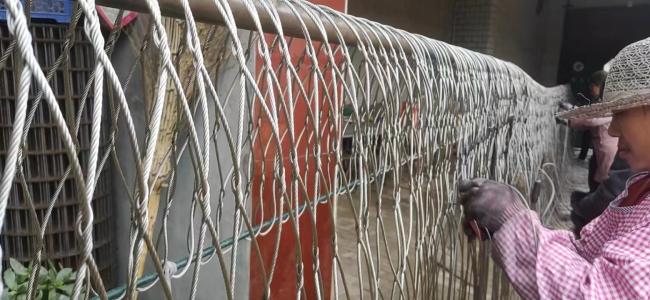

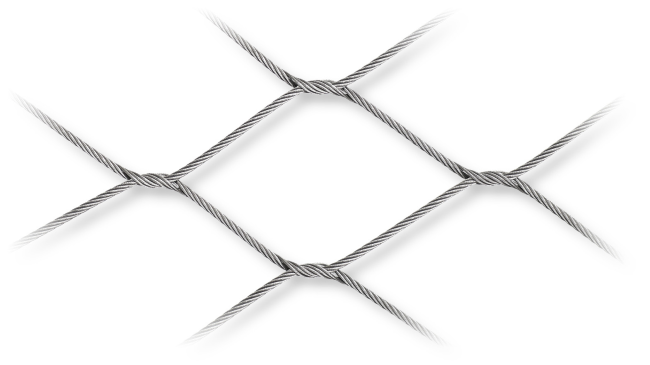

Stainless steel wire rope wove mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
1. Specification List: other specification can be customized.
Material:stainless steel 304, 304L, 316, 316L
cable structures:7 x7, 7 x19
Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm etc.
Mesh aperture: 25*25mm 30*30mm 35*35mm 40*40mm 50*50mm 60*60mm 80*80mm 100*100mm etc.
Height: general 0.5-20meter
Length: general 0.5-30meter
Shape: There are irregular shape, triangle parallelogram trapezoid etc.
| Item No.s | Cable Diameter |
Mesh Opening Size (W×H) |
Normal Break | ||
| inch | mm | inch | mm | ibs. | |
| YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3276W | 1/8 | 3.2 | 3×3 | 76×76 | 1,600 |
| YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2410W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2476W | 3/32 | 2.4 | 3×3 | 76×76 | 920 |
| YT-2460W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2450W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2076W | 5/64 | 2.0 | 3×3 | 76×76 | 676 |
| YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-2038W | 5/64 | 2.0 | 1-1/2×1-1/2 | 38×38 | 676 |
| YT-1676W | 1/16 | 1.6 | 3×3 | 76×76 | 480 |
| YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1638W | 1/16 | 1.6 | 1-1/2×1-1/2 | 38×38 | 480 |
| YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| YT-1238W | 3/64 | 1.2 | 1-1/2×1-1/2 | 38×38 | 270 |
| YT-1230W | 3/64 | 1.2 | 1.2×1.2 | 30×30 | 270 |
| YT-1225W | 3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |
| YT-1220W | 3/64 | 1.2 | 4/5×4/5 | 20×20 | 270 |
2. Rope mesh has the following characteristics:
| 1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors a good view of sight. |
| 2. Flexibility: the smooth mesh surface can get in close contact with animal's fur and feather without damaging them and meanwhile guarantees enough tensile strength. |
| 3. Its rust and corrosion resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduces the zoo's operating costs. One-time investment provides permanent use-its comprehensive profits outperform other competitive products greatly. |
| 4. Light weight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service. |
3. Accessory:
4. Application:
It can also used in the following areas: stair railing,balustrade infill, architectural surface plant climbing net, Aviary Mesh, Bird Netting,Animal Enclosure, Zoo Mesh,Agriculture,Residential,Sports Fence, Etc.
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.
