Flexible Zoo Wire Mesh With 3mm In 60mm Hole For Tiger Cage

Price Negotiable

Price: Negotiable

MOQ: 10 Sqm

Delivery Time: 5-8 Work Days

Brand: Yuntong

Product Description

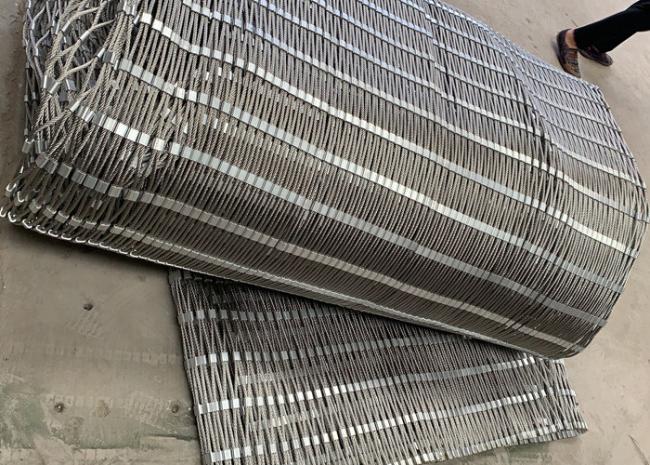

Flexible zoo wire mesh with 3mm in 60mm hole for tiger cage

zoo wire mesh Features:
1.Light weight, high strength, not easy to corrode.
2.Good flexibility, fatigue resistance, impact resistance, high breaking force, and the overall structure is sturdy and durable. 3.The service life is more than 30 years, close to nature, green and environmental protection,
4.With good perspective, luxurious appearance and novel style, zoo wire mesh is a great landscape in itself.

Material	AISI 316 stainless steel.EN1.4401
OW	Opening Width
OH	Opening Height

Rope diameter	1.2 mm	1.5 mm	2.0 mm	3.0 mm
Rope Structure	7 x 7	7 x 7	7 x 7	7 x 19
Test Break Loading	81 KG	168KG	290 KG	700 KG

Mesh	Rope Diameter
OW X OH	1.2mm	1.5 mm	2.0 mm	3.0 mm
20 x 35	1220
25 x 45	1225	1525
30 x 52	1230	1535
35 x 61	1235	1535	2035
40 x 70	1240	1540	2040	3040
50 x 90	1250	1550	2050	3050
60 x 105	1260	1560	2060	3060
70 x 120	1270	1570	2070	3070
80 x 140	1280	1580	2080	3080
100 x 175	12100	15100	20100	30100
120 x 210	12120	15120	20120	30120
160 x 280	12160	15160	20160	30160
180 x 315	12180	15180	20180	30180
200 x 350	12200	15200	20200	30200
