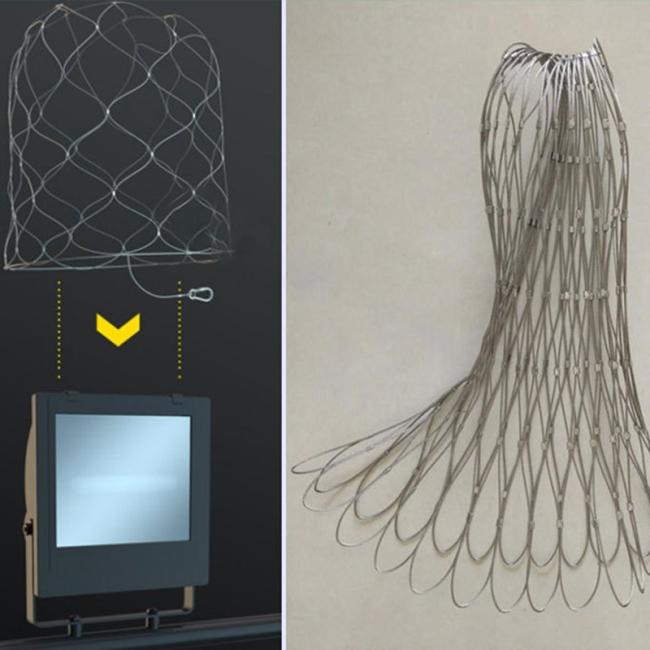

SS316 Stainless Steel Rig Fixture Drop Prevention Nets for Secondary Retention

Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.

The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s	Cable Diameter		Mesh Opening Size (W×H)		Normal Break
	inch	mm	inch	mm	ibs.
YT-3212F	1/8	3.2	4.75×8.23	120×207.8	1,600
YT-3210F	1/8	3.2	4×6.9	102×176.7	1,600
YT-3211F	1/8	3.2	3.5×6.15	90×156	1,600
YT-3212F	1/8	3.2	3×5.2	76×131.6	1,600
YT-3213F	1/8	3.2	2×3.46	51×88.3	1,600
YT-3214F	3/32	2.4	4×6.9	102×176.7	920
YT-3215F	3/32	2.4	3.55×6.15	90×156	920
YT-3216F	3/32	2.4	3×5.2	76×131.6	920
YT-3217F	3/32	2.4	2.4×4.16	60×104	920
YT-3218F	3/32	2.4	2×3.46	51×88.3	920
YT-3219F	5/64	2.0	3×5.2	76×131.6	676
YT-3220F	5/64	2.0	2.4×4.16	60×104	676
YT-3221F	5/64	2.0	2×3.46	51×88.3	676
YT-3222F	5/64	2.0	1-1/2×2.6	38×65.8	676
YT-3223F	1/16	1.6	1.2×2.08	76×131.6	480
YT-3224F	1/16	1.6	2×3.46	51×88.3	480
YT-3225F	1/16	1.6	1-1/2×2.6	38×65.8	480
YT-3226F	1/16	1.6	1.2×2.08	30×52	480
YT-3227F	1/16	1.6	1×1.73	25.4×44	480
YT-3228F	3/64	1.2	1-1/2×2.6	38×65.8	270
YT-3229F	3/64	1.2	1.2×2.08	30×52	270
YT-3230F	3/64	1.2	1×1.73	25.4×44	270
YT-3231F	3/64	1.2	4/5×1.39	20×34.6	270

(1)  Mesh type: 1.Woven 2. Ferrule mesh

(2) cable structures:7 x7, 7 x19

2. Shape: There are irregular shape, triangle parallelogram trapezoid etc.

Stainless steel flexible wire rope mesh adopt ferruled type which is sturdy and unlimited in wide and long ;

This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;

3 . Packing and Delivery:

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

4. Application:  It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
