Flexible Light Drop Anti Theft Safety Wire Mesh Stainless Steel Rope Net Bag

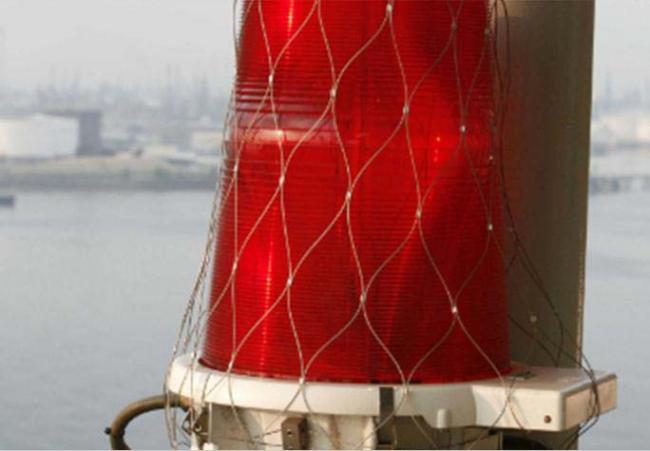

Stainless steel rope mesh pocket is mainly used for bag anti-cutting and anti-theft, bridge ship chandelier fall prevention, high-altitude fall-prone device protection, loading heavy objects, etc.. Its high strength flexibility and tensile strength, can be loaded with goods for comprehensive protection.

Details:

Material : Stainless steel 304, type 304 L, type 316, type 316L.

It is rhombus mesh, has excellent flexible performance,

virtually indestructible, mostbreaking resistant force,

most resisting rain, snow, hurricane.

As the material is virtually indestructible stainless steel, then it can be safely contain any species on

land, in the air indoors or out.

No matter how large, how small, or how cunning you specimens are, we assure their

complete security.

Advantages :

Stainless Steel Flexible Cable Rope Diamond Ferruled Mesh has characteristic property and capacity to replace other steel wire mesh in certain application.Sometimes better.

• Unique design idea.3D-structure,Flexible,elegant,discreet,filigreed,multifuncational.
• Light weight,High open area % .
• Corrosion resistant,allows strongh airflow.
• Total pro-environment,recyclable,no toxic,non flammable.
• Maintenaance free,don't ask any special cleaning & coating.
• At least 10 years guaranteed.

Hole Size (Opening)	1.2MM(3/64) (7 x 7 )	1.6MM(1/16) (7 x 7 )	2.0MM(5/64) (7 x 7 )	2.4MM(3/32) (7 x 7 )	3.2MM(1/8) (7 x 19 )
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120


Material of Cable Webnet : Stainless steel 304,304L,316,306L etc.

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0







Mesh Orientation

There are two orientations : Horizontal & Knotted .



Ferruled Type





Knotted Type





Features of the Webnet
