Black Oxide Flexible Wire Rope Mesh Grade 316 Stainless Steel Cable Netting
Black Oxide Mesh Specification :
| Black Oxide Mesh | |||||
| Model | Wire Diameter | Mesh Opening | Normal Break | ||
| inch | mm | inch | mm | 1bs. | |
| YT-1220 | 3/64 | 1.2 | 4/5 x 4/5 | 20 x 20 | 270 |
| YT-1225 | 3/64 | 1.2 | 1x1 | 25.4 x 25.4 | 270 |
| YT-1230 | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1238 | 3/64 | 1.2 | 3/2 x 3/2 | 38 x 38 | 270 |
| YT-1625 | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1630 | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1638 | 1/16 | 1.6 | 3/2 x 3/2 | 38 x 38 | 480 |
| YT-1650 | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1676 | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-2038 | 5/64 | 2.0 | 3/2 x 3/2 | 38 x 38 | 676 |
| YT-2050 | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2060 | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2076 | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2450 | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2460 | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2476 | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2490 | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2410 | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-3250 | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1600 |
| YT-3276 | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3290 | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3210 | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3212 | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |

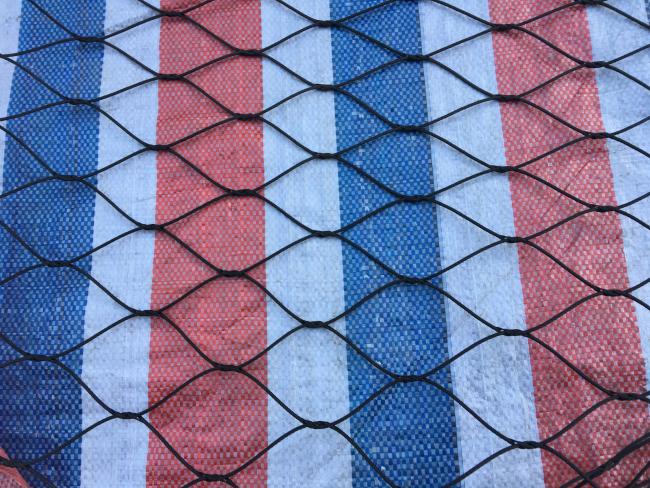

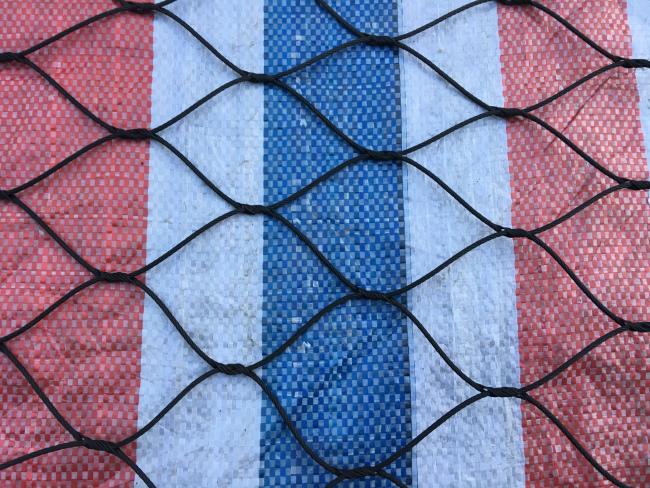

Black Oxide Wire Rope Mesh Details
| Mesh Type | Ferruled or Knotted |
| Mesh Angle | 60 degree in rhombus shape |
| Mesh Orientation | Horizontal or Vertical |
| Panle Measurement | Custom-made in width and lenght |
| Finished | Black Oxide |
| Application | Balustrade , Facade Cladding , Animal Enclosure , Aviary Netting |
Wire rope black oxide mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ;
Stainless steel wire rope mesh is custom manufactured to suit your balustrade, railing or architecture application ;
Finished diamond mesh style when it is stretched at 60 degree angle ;
Mesh can be applied in either a vertical or horizontal direction, again dependent on the design ;
Mesh sizes range from 20mm to 120mm or bigger with stainless cable diameters from 1.2mm to 4.0 mm.
| Stainless Steel Cable Mesh specification | |
| Various cable diameters: | 1.2 to 4.0 mm |
| Various mesh size: | 25 x 43mm to 200 x 346 mm |
| Various cable structures: | 7 x7, 7 x19, 1X19 |
| Stainless Steel Cable Mesh type | |
| Inter-woven type | |
| Ferrule Type | Aluminum ferrule |
| Ferrule Type | Stainless steel ferrule |
| Ferrule Type | Nickel Plated copper ferrule type |
Applications
Stainless steel black oxide wire rope mesh is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
