Balustrade Infill Stainless Steel Wire Rope Mesh SUS304 SS316 Anti Corrosion
Balustrade Fencing Handrail Infill Stainless Steel Wire Rope Mesh Netting SS 304 SS 316 Anti-corrosion non-rusting
| Stainless Steel Woven Wire Rope Mesh(Knotted Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break
|
||
| inch | mm | inch | mm | ibs. | |
| YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2510W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2560W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2550W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-1680W | 1/16 | 1.6 | 3.15 | 80*80 | 480 |
| YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| Flexible Stainless Steel Wire Rope Mesh(Ferrule Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break
|
||
| inch | mm | inch | mm | ibs. | |
| YT-3212F | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210F | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290F | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3250F | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2510F | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2560F | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2550F | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2060F | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-1680F | 1/16 | 1.6 | 3.15 | 80*80 | 480 |
| YT-1650F | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
Stainless steel flexible wire rope mesh adopt ferruled type which is sturdy and unlimited in wide and long ;
This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;
And Mesh can be applied in either a vertical or horizontal direction dependent the balustade or railing design ;
2. cable structures:7 x7 7*19

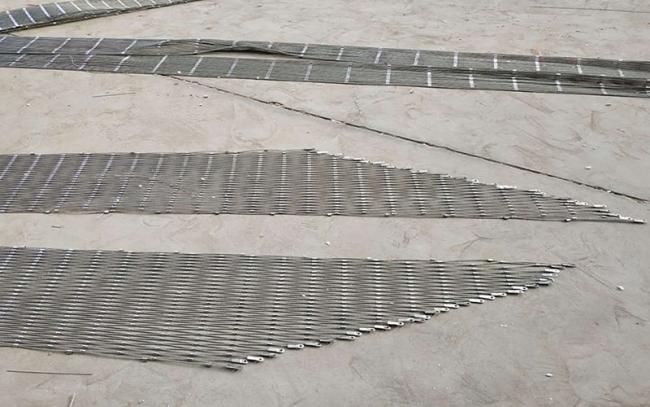

3. Shape: There are irregular shape, triangle parallelogram trapezoid etc.
4 . Packing and Delivery:
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
5. Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
6. Stainless Steel Cable Mesh advantages
7. A corner of the factory:
