7 X 7 Stainless Steel Ferrule Rope Mesh High Strength Fence For Animal Cages
High-strength Stainless Steel Wire Rope Mesh Fence for Animal Cages
[Material]: Made of stainless steel SUS304, 304L, 316, 316L,
[Specification]: The structure of the wire rope used is 7x7 rope, 7x19 rope
Common mesh 30 x 30mm, 40 x 40mm, 60 x 60mm, 70 x 70mm, 80 x 80mm
Commonly used 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm

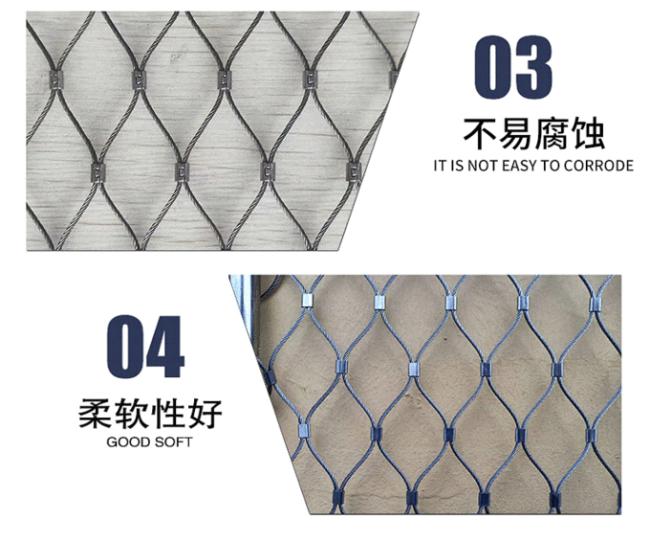

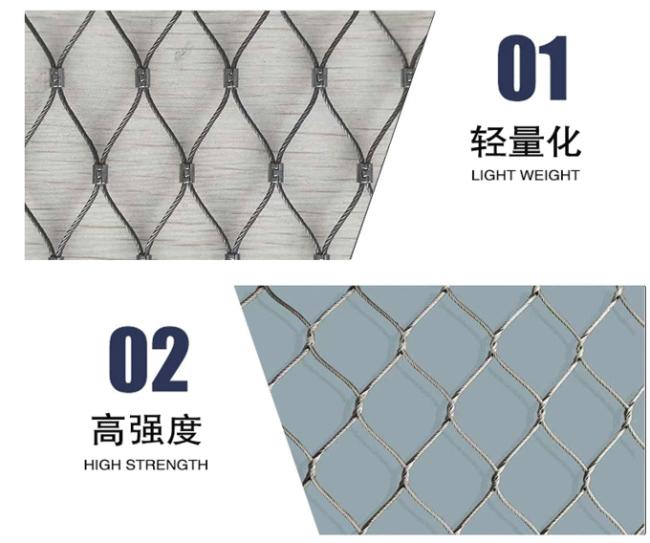

[Features of Stainless Steel Cable Mesh Fencing ]:
A fabric of particular resilience and flexibility, a “net” whose strands are neither knotted nor crossed: the Stainless Steel Wire Rope Mesh is a construction based on stainless steel wire ropes that lie parallel in pairs connected and reciprocally curved by offset sleeves. The net construction can be pulled apart like an accordion, producing a spring force that varies depending on the mesh aperture and wire-rope thickness. The Stainless Steel Wire Rope Mesh is a vibrant, premium-quality product: the mesh aperture (variable, from very tight to very wide) and the wire-rope diameter (1.2 mm, 1.5 mm, 2.0 mm, and 3.0 mm) determine its functionality and aesthetics
[Stainless Steel Cable Mesh Fencing Usage]:

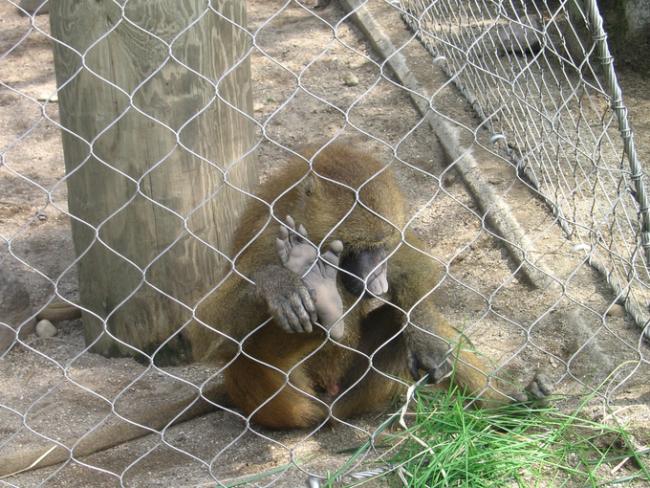

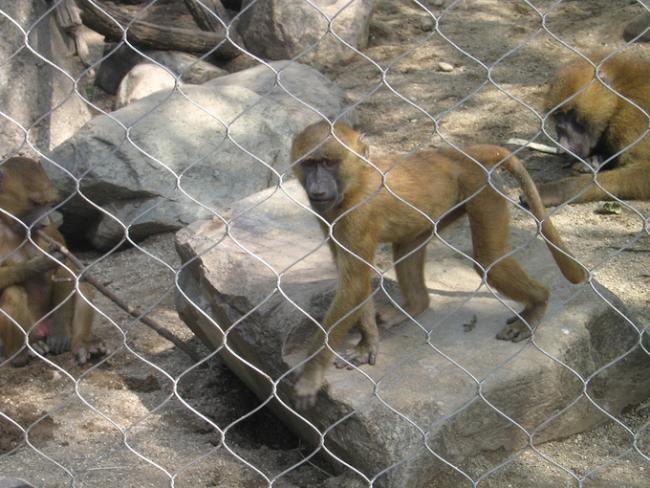

Zoo fence, animal fence, animal fence, animal cage, bird cage, ocean park, garden construction, bridge, stadium, exhibition hall, municipal construction, indoor and outdoor architectural decoration, protective engineering, etc. Stainless steel rope net is an ideal choice for modern decoration and protection.
Zoo facilities set high demands in architecture and the chosen products. They have to provide safety and stability as well as an unlimited view and enable species-appropriate keeping.
Characteristic
Recommended Stainless Steel Cable Mesh Specification for Aviaries :
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/64" (1.2MM) | 1" x 1" | 270 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1" x 1" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1.2" x 1.2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.2" x 1.2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.5" x 1.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.0" x 2.0" | 676 LBS |
Aviary Wire Netting by Yuntong made from stainless steel wires, and has skin-like characteristics. It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.
Material of Cable Webnet : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
