Bird Netting Aviary Fence Steel Cable Mesh 30*30mm
Bird netting,stainless steel rope mesh for aviary fence mesh 30*30 mm
Stainless steel rope ferrule mesh, the stainless steel grade includes SUS 304, SUS 304L, SUS 316, SUS 316L.

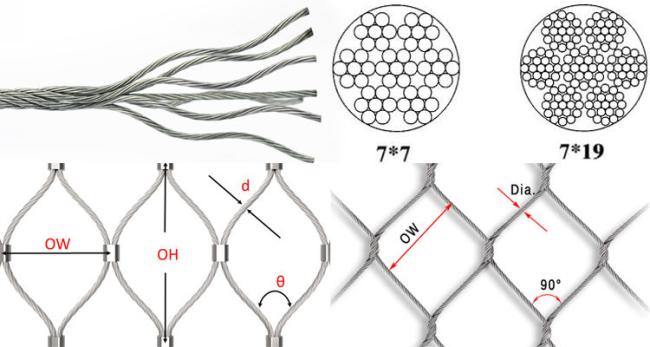

The structures of the stainless steel wire rope mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire rope diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
The application of stainless steel rope ferrule mesh:Staiway Belcony Balustrade Or Railing Aviary Mesh, Bird Netting, Animal Enclosure, Zoo Mesh, Agriculture, Residential, Sports, Fall Security, Etc.
cable structures
The stainless steel wire rope mesh are hand-made from the stainless steel wire rope, there are two types: wove type mesh and ferrule type mesh.
Stainless steel wire rope wove mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
| Flexible Stainless Steel Cable Mesh(Ferrule Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break
|
||
| inch | mm | inch | mm |
ibs.
|
|
| YT-3212F | 1/8 | 3.2 | 4.75×8.23 | 120×207.8 | 1,600 |
| YT-3210F | 1/8 | 3.2 | 4×6.9 | 102×176.7 | 1,600 |
| YT-3211F | 1/8 | 3.2 | 3.5×6.15 | 90×156 | 1,600 |
| YT-3212F | 1/8 | 3.2 | 3×5.2 | 76×131.6 | 1,600 |
| YT-3213F | 1/8 | 3.2 | 2×3.46 | 51×88.3 | 1,600 |
| YT-3214F | 3/32 | 2.4 | 4×6.9 | 102×176.7 | 920 |
| YT-3215F | 3/32 | 2.4 | 3.55×6.15 | 90×156 | 920 |
| YT-3216F | 3/32 | 2.4 | 3×5.2 | 76×131.6 | 920 |
| YT-3217F | 3/32 | 2.4 | 2.4×4.16 | 60×104 | 920 |
| YT-3218F | 3/32 | 2.4 | 2×3.46 | 51×88.3 | 920 |
| YT-3219F | 5/64 | 2.0 | 3×5.2 | 76×131.6 | 676 |
| YT-3220F | 5/64 | 2.0 | 2.4×4.16 | 60×104 | 676 |
| YT-3221F | 5/64 | 2.0 | 2×3.46 | 51×88.3 | 676 |
| YT-3222F | 5/64 | 2.0 | 1-1/2×2.6 | 38×65.8 | 676 |
| YT-3223F | 1/16 | 1.6 | 1.2×2.08 | 76×131.6 | 480 |
| YT-3224F | 1/16 | 1.6 | 2×3.46 | 51×88.3 | 480 |
| YT-3225F | 1/16 | 1.6 | 1-1/2×2.6 | 38×65.8 | 480 |
| YT-3226F | 1/16 | 1.6 | 1.2×2.08 | 30×52 | 480 |
| YT-3227F | 1/16 | 1.6 | 1×1.73 | 25.4×44 | 480 |
| YT-3228F | 3/64 | 1.2 | 1-1/2×2.6 | 38×65.8 | 270 |
| YT-3229F | 3/64 | 1.2 | 1.2×2.08 | 30×52 | 270 |
| YT-3230F | 3/64 | 1.2 | 1×1.73 | 25.4×44 | 270 |
| YT-3231F | 3/64 | 1.2 | 4/5×1.39 | 20×34.6 | 270 |
It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and
Fall Security, Etc.
