SUS 304 316 ferrule type stainless steel wire rope mesh grid for stair railing with 2.0 mm wire 70*70 mm hole

1. Specification:

Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.

The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

Height: general 0.5-30meter

Length: general 0.5-30mete

Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s	Cable Diameter		Mesh Opening Size (W×H)		Normal Break
	inch	mm	inch	mm	ibs.
YT-3212F	1/8	3.2	4.75×8.23	120×207.8	1,600
YT-3210F	1/8	3.2	4×6.9	102×176.7	1,600
YT-3211F	1/8	3.2	3.5×6.15	90×156	1,600
YT-3212F	1/8	3.2	3×5.2	76×131.6	1,600
YT-3213F	1/8	3.2	2×3.46	51×88.3	1,600
YT-3214F	3/32	2.4	4×6.9	102×176.7	920
YT-3215F	3/32	2.4	3.55×6.15	90×156	920
YT-3216F	3/32	2.4	3×5.2	76×131.6	920
YT-3217F	3/32	2.4	2.4×4.16	60×104	920
YT-3218F	3/32	2.4	2×3.46	51×88.3	920
YT-3219F	5/64	2.0	3×5.2	76×131.6	676
YT-3220F	5/64	2.0	2.4×4.16	60×104	676
YT-3221F	5/64	2.0	2×3.46	51×88.3	676
YT-3222F	5/64	2.0	1-1/2×2.6	38×65.8	676
YT-3223F	1/16	1.6	1.2×2.08	76×131.6	480
YT-3224F	1/16	1.6	2×3.46	51×88.3	480
YT-3225F	1/16	1.6	1-1/2×2.6	38×65.8	480
YT-3226F	1/16	1.6	1.2×2.08	30×52	480
YT-3227F	1/16	1.6	1×1.73	25.4×44	480
YT-3228F	3/64	1.2	1-1/2×2.6	38×65.8	270
YT-3229F	3/64	1.2	1.2×2.08	30×52	270
YT-3230F	3/64	1.2	1×1.73	25.4×44	270
YT-3231F	3/64	1.2	4/5×1.39	20×34.6	270

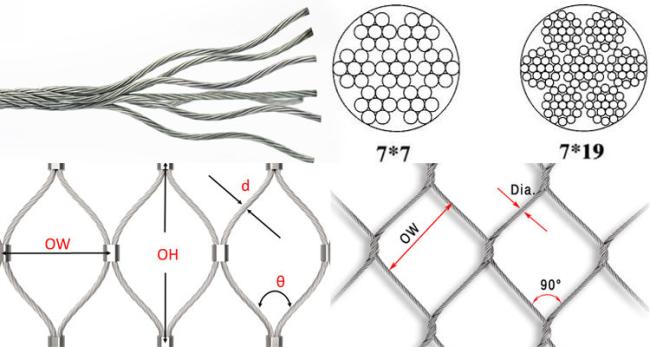

2. cable structures and type

3. Advantage:

1.The netting is clipped to the cable,

2. The mesh size and diameter can be modified

3. It can be made to customer orders and statically tested – especially suitable for facades

4. High strength, strong toughness, free-angles curving and fold, easy for transportation and
installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.

4.Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
