OMER KMER High Pressure Heavy Duty Hydraulic Drive Motor For Aerial Working Platform
Price:
USD 1
MOQ:
1 set
Delivery Time:
15-20 days after received payment
Brand:
KERSTERN
Product Description

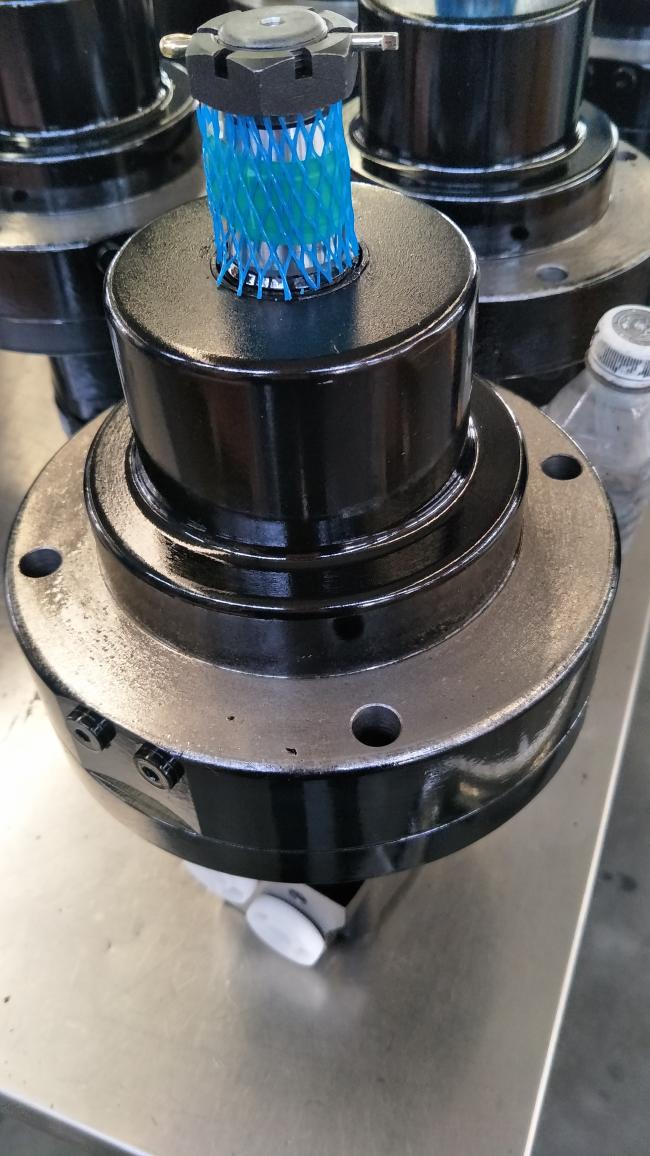

OMER KMER Heavy Duty Hydraulic Drive Motor For Aerial Working Platform
KMER HEAVY DUTY HYDRAULIC DRIVE ORBIT WHEEL MOTOR WHICH USED IN AERIAL WORKING PLATFORM
BMER series hydrualic wheel motor adapt the advanced Geroler gear set designed with high speed
distribution flow and igh pressure, and have good stability in low speed , and can keep high
volume efficiency. The unit can be supplied the individual variant in operating multifunction in
accordance with requirement of applications.
| Type | KMER | KMER | KMER | KMER | KMER | KMER | KMER | KMER | KMER | KMER | KMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) |
cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max.pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 90 | 90 | 90 | 90 | 90 | |
