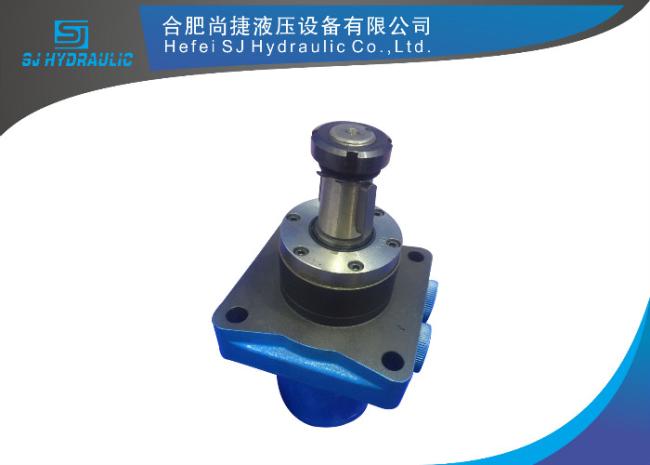

BM2 20Mpa Geroler Hydraulic Motor Flange Medium Duty High Torque 667 Rpm

Price Negotiable

Price: USD 1

MOQ: 1 set

Delivery Time: According to order quantity

Brand: SJ HYD

Product Description

BM2W series Rhomb-flange Improved Medium Duty hydraulic motor Which replace Paker TE Series

hydrualic wheel motor

One type of wheel motor, which is equal to Parker series motors .

This medium duty motor has higher pressure ratings than Small motor, for applications requiring higher torque. Robust roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections. It uses high pressure shaft seals, robust roller bearings and high fl ow shaft seal
cooling.

Type		BM2W	BM2W	BM2W	BM2W	BM2W	BM2W	BM2W	BM2W	BM2W	BM2W	BM2W
Type		65	80	100	125	160	200	230	250	295	315	375
Displacement (cm3/rev.)		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max. speed (rpm)	cont.	667	543	439	350	283	229	247	216	196	178	152
Max. speed (rpm)	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque	rated	110	136	165	214	265	312	318	329	348	364	372
(N•m)	cont.	126	157	191	245	307	382	378	381	393	448	439
	int.	176	215	268	335	422	520	528	543	547	587	613
Max. output (kW)	cont.	8.3	8.8	7.9	8.9	8.9	9	9.9	9.3	8.7	8	7.6
Max. output (kW)	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max.pressure drop (MPa)	cont.	14	14	14	14	14	14	12	11	10	10	9
	int.	19	19	19	19	19	19	16.5	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow (L/min)	cont.	45	45	45	45	45	57	57	57	57	57	57
Max. flow (L/min)	int.	57	57	57	57	57	75	75	75	75	75	75
