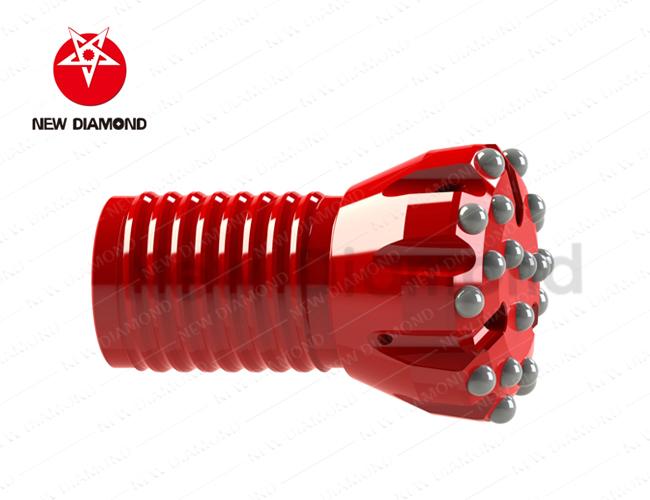

P96 Cemented carbide steel Top Hammer drilling tool Thread button drill bits
Description
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Applications
Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole,mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore andother fields.
Specifications
| P96 | Head shape |
Diameter (mm) |
Bit length (excluding alloy) | NO.of flushing holes | NO X button diamter | Weight(KG) | |||
| Front | Side | Toothed | Gauge | Front | |||||
|
The conventional drill bit |
Convex Face | 116 | 184 | 3 | 6 | Round Button+ Ballistic Button | 9XØ14 | 6XØ14 | - |
| Convex Face | 130 | 194 | 3 | 6 | Round Button+ Ballistic Button | 9XØ15 | 9XØ14 | - | |
| We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape. | |||||||||
Feature Advantage
Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year’s professional working experience.
4. Rock drilling tools are exported throughout the world.
The appearance of the picture is different from that of the actual product, and the actual product is the standard.
