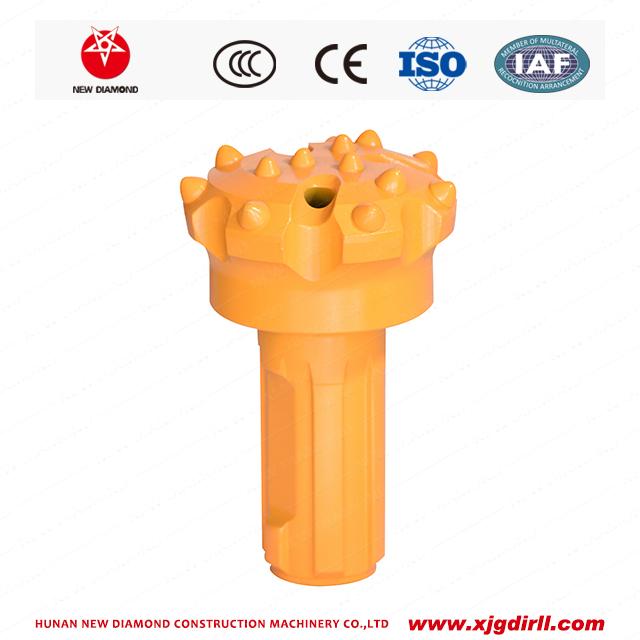

Middle - Low Pressure Cir110 110mm Dth Hammer Bit
Middle-Low Pressure Dth Hammer Cir110 110mm Bit
Hunan New Diamond offers top quality DTH hammers and bits which have been tested in the hardest rock formation. Our bits use quality hardened steel alloy for the bit body and premium quality tungsten carbide buttons. With superb performance and long life span. Our bits won high reputation among our customers.
1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. Stable drilling speed: the bit is scraped and cut to break the rock.
4. Good performance: strong wear resistance, good diameter protection which will make the cutting teeth more efficiently.
5.Lower cost.
Applications
The New Diamond manufactured CIR110 is widely used in geological exploration, coal mine, water well drilling, borewell drilling, highway, railway, bridge, construction, mining, quarry, Civil engineering, ore mining,Dimension stone industry and so on.
Specifications
| CIR series | Head shape |
Diameter mm |
Number of vents | Button qty.pcs*dia.mm | weight (KG) | ||
| Button Type | Gauge | Front | |||||
| CIR110 | Concave Face | 110 | 2 | Ballastic | 6XØ14 | 6XØ13 | 6.2 |
| Concave Face | 130 | 2 | Ballastic | 8XØ14 | 4XØ14+3XØ13 | 8.05 | |
| Flat Face | 140 | 2 | Ballastic | 8XØ14 | 8XØ14 | 9 | |
| WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape. | |||||||
1. Button Shape: Spherical,Semi-ballistic,Ballistic.
2. Durable performance, wear resistant and withstanding large impacting force.
3. Long life span.
5. Fast delivery time.
