stainless steel strainer pipe / Water Well Screen / Johnson Wire Screen / wedge wire oil well screen for drilling wells
Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd WEDGE WIRE STRAINER
Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens offer the largest range of Wedge Wire Strainers. All welded vee wire screen is used as filter media. We can offer them in any shape and size to meet your exact requirement.
Available in many configurations like
Cylindrical Wedge Wire Strainer Wedge Wire Basket Strainer for T or Y strainers
Conical V Wire Strainer Strum Box V Strainer
Pre coat Wedge Wire Filter Wedge wire Filter Cartridges
Screens for Pusher Centrifuges Salt Screens
We make them all.

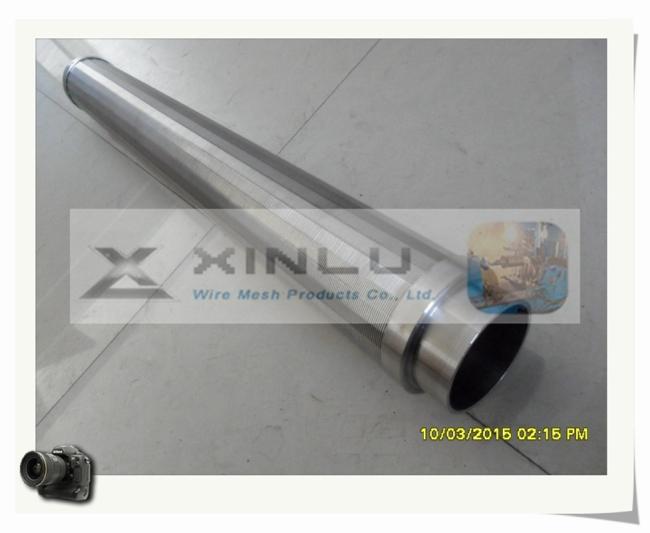

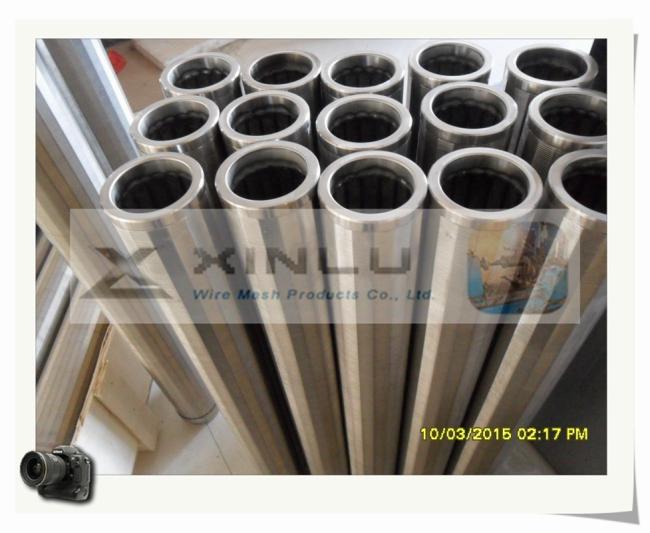

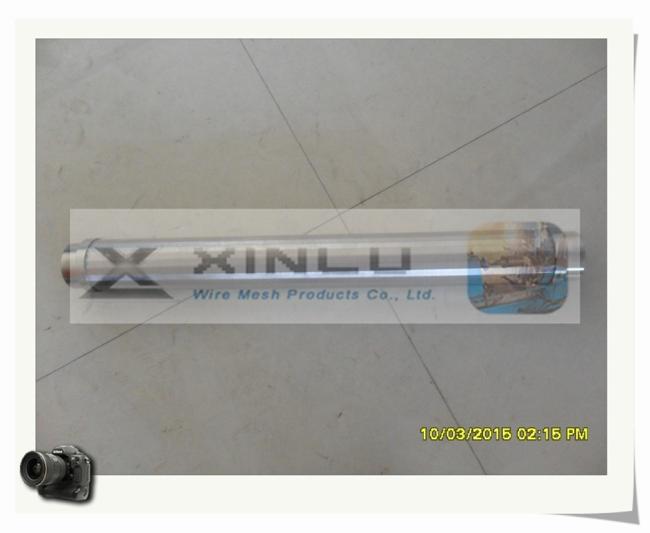

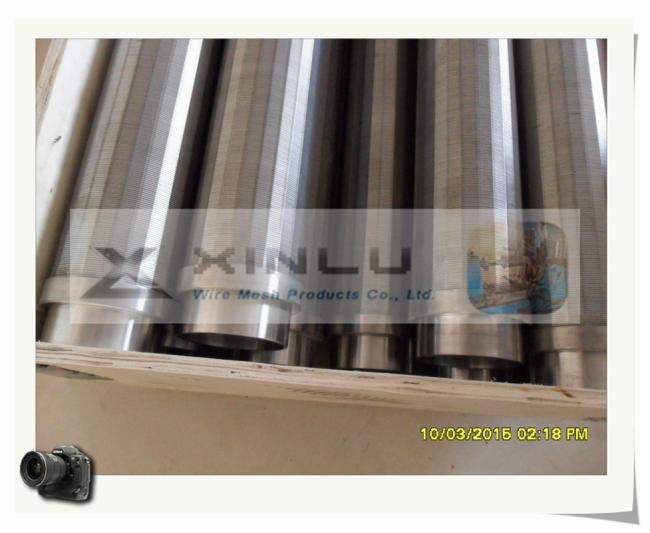

Jonson Vee Screen Stainless Steel 38 Bar 20 Slot OD 219 8 " Deep Water Well
Product Description:

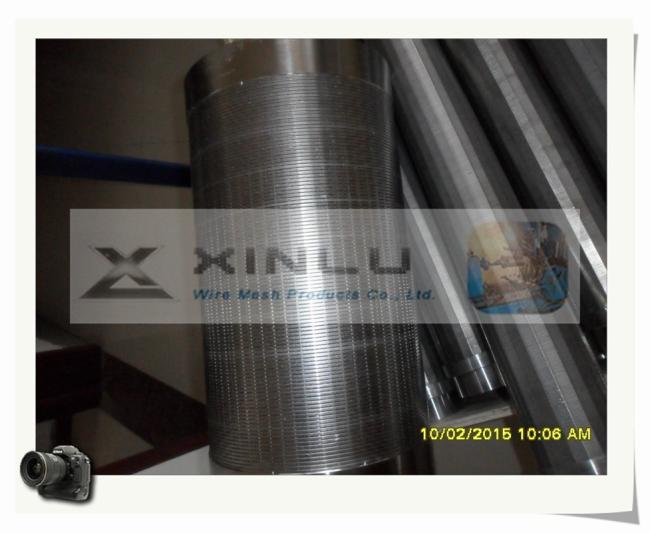

Jonson Vee wire screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.
Specification:
| Material | Stainless steel |
| Grade | 205, 304,304L, 316L |
| O.D | 89mm 117mm 219mm 273mm 325mm |
| Size | 3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12" |
| Slot size | 0.5 mm,0.63mm, 0.75mm, 1.0mm |
| Length | 2.9m / 5.8 m, 100-6000mm |
| End connection | Welded rings |
| Wire size | 63# 93# 118 # |
| Support rod | 140 # |
| Wire shape | V shape |
Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Characteristic:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Application:
Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep well
Wire Data reference table:
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | ROUND |
|||||
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
Any inquiry please don't hesitate to contact us !(whatsApp+86-13315867171)
Hope we can work together soon.
Contact:feiyatrade@hotmail.com
Skype: terastar.lee
---------------------------------------------------------------------------------------------------
Our factory Xinlu Wire Mesh product co., Ltd located in Anping country, Hebei Province, China.
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
