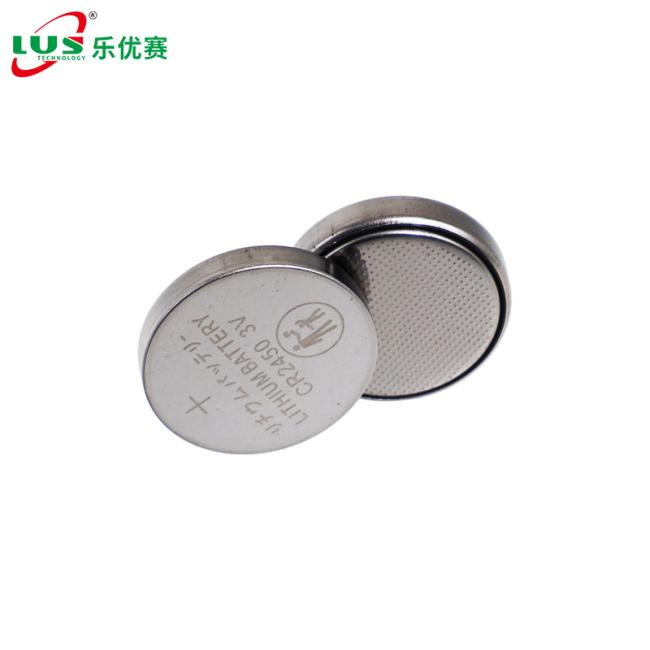

OEM non rechargeable lithium coin cell battery CR2450 3V 600mah li/mno2 button battery
OEM non rechargeable lithium coin cell battery CR2450 3V 600mah li/mno2 button battery
CR2450 3-Volt Lithium Coin Battery CR2450 battery 3.0Volt non-rechargeable lithium battery 3V coin battery 600mah button cell battery CR2450 Coin Lithium Batteries CR2450 Battery 3v Lithium Button Cell battery 3V 600mah Coin 2450 Batteries CR2450 3V Lithium Coin Cell Button Battery Replaces DL2450, ECR2450 & 2450 3V coin cell batteries
CR2450-1P Limno2 Battery Pack IMOS1p1-A1 3V
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS |
| Nominal voltage | V | 3.0 | Standard discharge |
| Nominal capacity | mAh | 600(single cell) | Standard discharge |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second |
| Off-load voltage | V | ≥3.30 | |
| Storage temperature | ℃ | 0~35 | |
| Standard weight | g | 7g | Unit cell |
CR2450 lithum battery 600mah 3V battery:
Coin cell list
Non rechargeable limno2 button battery 3.0Volt button cell batteris
|
Mode |
Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
Rechargeable cion cell battery 3.6V cion lithium ion battery
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Max. Discharge Current (mA) | Resistance (mΩ) | Diameter (mm) | Height (mm) | Weight Approx (g) |
| LIR1025 | 3.6 | 6±2 | 1C | 10.0 -0.15 | 2.5 +0.15 | 1.1±0.2 | |
| LIR1220 | 3.6 | 8±2 | 1C | 12.5 -0.2 | 2.0 +0.35 | 0.8±0.3 | |
| LIR1254 | 3.6 | 65±5 | 1C | ≤600 | 12.0 -0.2 | 5.4 +0.2 | 1.8±0.2 |
| LIR1620 | 3.6 | 16±2 | 1C | ≤2000 | 16.0 -0.2 | 2.0 +0.35 | 1.2±0.3 |
| LIR1632 | 3.6 | 25±2 | 1C | ≤2000 | 16.0 -0.2 | 3.2 +0.35 | 1.7±0.3 |
| LIR1654 | 3.6 | 120±5 | 1C | ≤600 | 16.0 -0.2 | 5.4 +0.2 | 2.4±0.2 |
| LIR2016 | 3.6 | 18±2 | 2C | ≤2000 | 20.0 -0.2 | 1.6 +0.35 | 1.7±0.3 |
| LIR2025 | 3.6 | 25±5 | 2C | ≤2000 | 20.0 -0.2 | 2.5 +0.25 | 2.3±0.3 |
| LIR2032 | 3.6 | 40±5 | 2C | ≤600 | 20.0 -0.2 | 3.2 +0.35 | 2.8±0.3 |
| LIR2050 | 3.6 | 80±5 | 2C | ≤600 | 20.0 -0.2 | 5.0 +0.2 | 3.8±0.2 |
| LIR2430 | 3.6 | 60±5 | 2C | ≤500 | 24.5 -0.2 | 3.0 +0.35 | 3.8±0.3 |
| LIR2450 | 3.6 | 120±10 | 2C | ≤450 | 24.5 -0.2 | 5.0 +0.35 | 5.0±0.3 |
| LIR2477 | 3.6 | 180±10 | 2C | ≤400 | 24.5 -0.2 | 7.7 +0.3 | 7.0±0.3 |
Main Application
1.RFID lable
2.Electrical scale
2.Camera, Computer
3.Home security devices
4.Electronic products:meters, clock&watch, calorimeters, electronic car keys, electronic dictionary
5.Memery backup power
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.
2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.
4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.
5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.
Welcomed ANY BUTTON CELL BATTERY PACK BY OEM CR2450
