High Laser Power Precitec Light Cutter 2.0 Pro fiber laser cutting head For Metal Cutting
High laser power Precitec Fiber Laser Cutting Head Light Cutter 2.0 Pro cutter 2.0 4kw 6kw For Metal Cutting
Cutthing head features
Whether for flatbed or bevel cutting systems: The cutting head LightCutter 2.0 is the perfect solution for efficient and cost-effective laser cutting. The new generation of our Light Cutter family is designed for cutting applications in the medium power range up to 4 kW and is characterized by a high cutting quality for all metals - especially mild steel, stainless steel and aluminum.Due to an automated motor-driven adjustment of the axial focus position, the cutting head works precise and stable at all times,even at accelerations of up to 3 g. The display of the set focus position on the front of the cutting head makes commissioning much easier. The LightCutter 2.0 Motorized covers a large Focus position range of 23 mm.
Specifications
| Items | Data |
| Laser Wavelength | 1030 … 1090 nm |
| Laser Power max. | 6 kw |
| Collimation focal length (fC) | 100mm |
| Focusing focal length (fF) | 150 mm and 200 mm (with VA) |
| NA specification | 99,0% included energy at Ɵ no more than 120 mrad |
| Average Transmission | > 97% @ 1030 - 1090 nm |
| Adjustment range | – horizontal (3 mm) |
| – vertical (focal position) | |
| Weight | approx. 4,4 kg / approx. 5,0 kg |

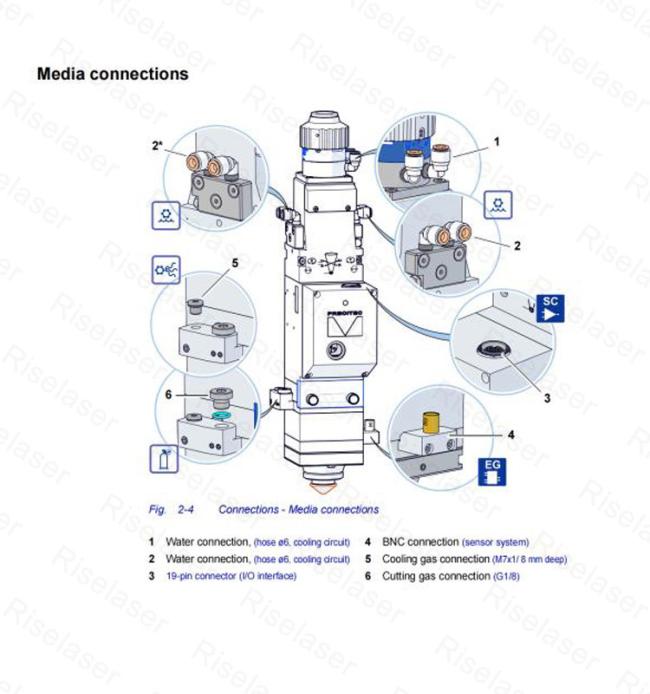

Cutting head contrucitons

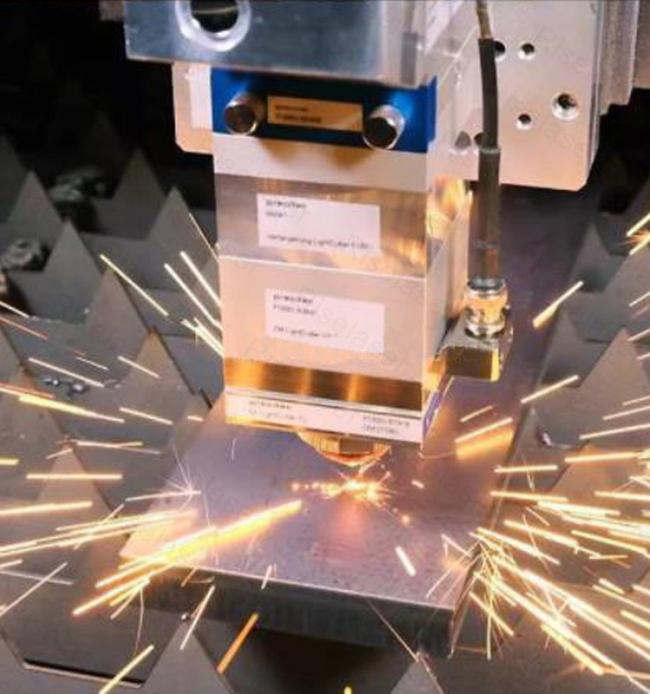

Cutting samples
Machine Packing
