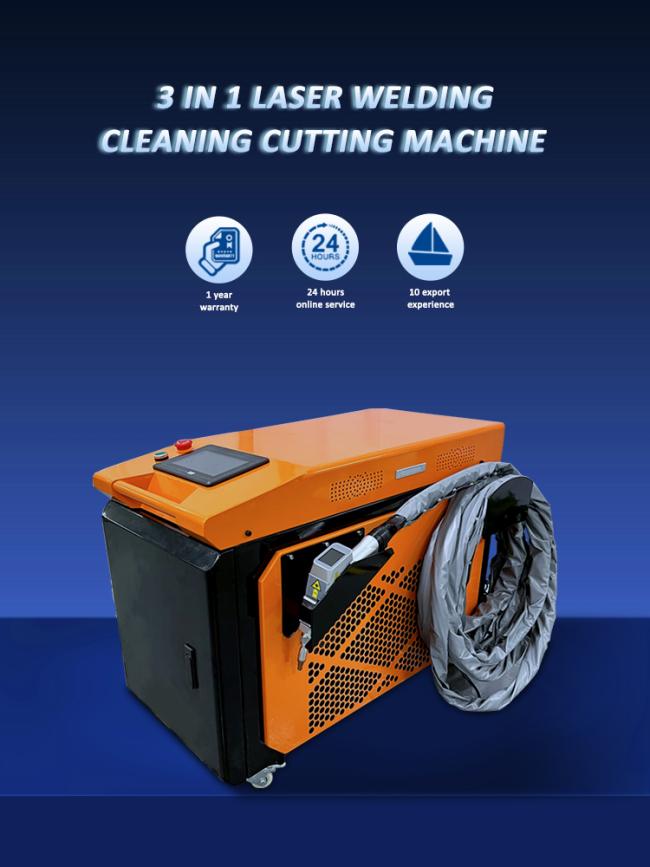

1500W Portable Laser Welder 3 In 1 Welding Cutting Cleaning Machine
1500W Portable Laser Welder 3 In 1 Welding Cutting Cleaning Machine
Riselaser 1500W Portable Laser Welding Cutting Cleaning Machine 3 in 1 Stainless Steel
Mini fiber laser welding machine is used to weld all kinds of metal materials. It can realize stainless steel mirror characters,stainless steel electroplating characters, stainless steel gold foil characters, precision stainless steel characters, precision aluminum characters, iron paint characters, etc.
Parameters
| Laser System | RL-F1000 | RL-F1500 |
| Laser Type | 1080nm Fiber Laser | |
| Laser Power | 1000W | 1500W |
| Cooling System | Water Cooling | |
| Way of working | Continuous / Modulation | |
| Laser source | Maxphotonics | |
| Speed range of welder | 0~120 mm/s | |
| Focal Spot Diameter | 0.5mm | |
| Ambient temperature range | 15~35 ℃ | |
| Environmental humidity range | <70% without condensation | |
| Welding thickness | 0.5-3mm | |
| Welding gap requirements | ≤1.2mm | |
| Operating voltage | AC220V | |
| Packing dimensions | 108*58*97cm | |
| Packing Weight | 163kg | |
| Fiber length | Standard 10m, the longest customized length15m | |
Features
1. Designed with compact machine body and handheld welding head, this laser welding machine is convenient to use and makes the welding process more flexible.
2. With the function of automatic laser welding, this machine has fast welding speed.
3. Mini fiber laser welding machine adopting simple control panel, this laser welding machine is easy to learn and simple to operate. No certificate is needed to operate it for beginners.
4. The finished welding seam is smooth and almost doesn't need any further polishing process.
Details Show
1.LASER SOURCE
Internationally famous laser source(Max/Raycus/JPT), stable laser power, long life,
good welding effect and beautiful welding seam.
2.3 IN 1 LASER HEAD
Support welding and cleaningand cutting
Dual touch screen,easy to control.
No consumables, small size,flexible processing and low cost.
3.WIRE FEEDER
Automation, saving labor cost color optional.
4.LASER FIBER
Suitable for long-distance operation, wide range, flexible and convenient.
5.OPERATION PANEL
Simple operation, different various shapes and widths can be
6.WATER COOLING
Constant temperature cold water machine condensation and rapid cooling,to ensure the constant temperature.
Company Introduction
Riselaser Technology Co., Ltd.
Established in 2015. Riselaser is a company that specializes in the manufacturing of laser products such as laser cutting machines, laser engraving machines, and laser marking machines. We handle both international and domestic sales. We product line encompasses a range of machines including laser cutting machines, laser marking machines, laser engraving machines, and laser welding machines.
Due to the high quality of our products and reliable performance, they are widely used in electronics, hardware, model- making, clothing, footwear, advertising, printing and packaging, toy-making, as well as more industries
Certification
FAQ
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible. 2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded?
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded? Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
