90J YAG 200W Soldering Jewelry Laser Welding Machine Laser Spot Welder
Price:
Negotiable
MOQ:
1 set of this Machine
Delivery Time:
5-9 working days
Brand:
Riselaser
Product Description

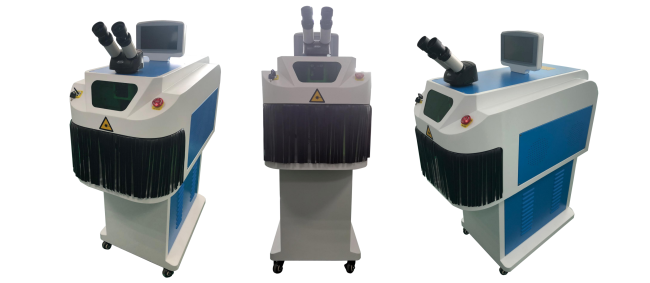

Compact and beautiful appearance
The quality of sheet metal is better than similar products,The appearance is compact and saves space. It adopts important xenon lamp, which can be used for 24 hours for a long time. Based on the humanized design, the operation is simple and convenient, and no professional personnel are required for maintenance and debugging. Therefore, this product is widely used in medical equipment, industrial automation, aerospace, marine engineering and other fields, and is well received by users.
- The energy is very strong, which is very suitable for welding.10x high-definition microscope and 10x built-in high-definition CCD display,
- large built-in chiller, one-button automatic pumping. When the water tank is full, it will automatically stop pumping water, and it can also be connected to an external chiller.
- The welding machine has a large working space and is easy to operate.
Parameters
| Model Name | RL-Y200 |
| Laser Type | 1064nm |
| Laser Power | 200W |
| Laser Engery | 90J |
| Pulse Width | ≤20ms |
| Pulse Frequency | ≤30Hz |
| Positioning accuracy | +/-0.02mm |
| Size of Light Spot | 0.2-2.0mm |
| Observing System | microscope |
FQA
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded?
1-8mm thick metal materials
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address. We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can
6.Packaging?
All our machines are packed in wooden boxes
7.Language interface: Supports language customization. You can also translate and insert to software.
