Industrial High Accuracy Pulse Fiber Laser Cleaner Paint Oil Metal Rust Removal
Industrial Handheld 200w High Accuracy Pulse Fiber Laser Cleaner Paint Oil Metal Rust Removal

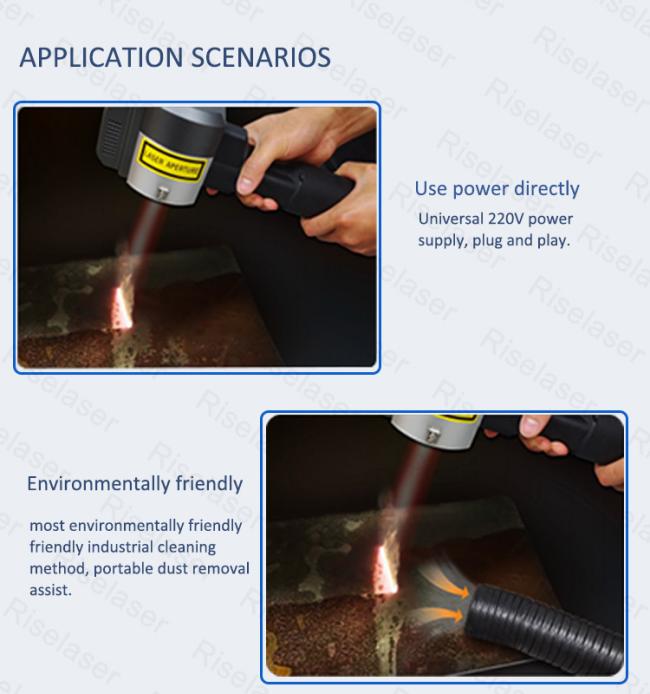

Fortunelaser laser cleaning machines are the latest high-tech products. It is convenient to install and operate, and easy to realize automation. Plug it in, turn it on, and start cleaning - free from chemicals, media, dust, and water.
No detergent, no media, no dust, no water cleaning. Auto-focus cleans curved surfaces for gentle cleaning of surfaces. Clean the resin, oil stain, rust, paint, and paint on the surface of the workpiece.
- This laser source offers exceptional stability and efficiency, providing reliable and consistent performance.
- The cooling air inlet of this product features a unique design with a portable detachable dust net. This innovative feature enables improved air intake while effectively preventing dust and dirt from entering the system. The dust net is easily removable, making it convenient for cleaning and maintenance purposes.
- This device incorporates a user-friendly touchscreen interface, allowing for effortless operation.With its interactive touch interface, this device simplifies operation and enhances user control over the laser system.
- Handheld Cleaning Head: This handheld cleaning head is designed with the flexibility to replace field lenses of different sizes. Weighing only 0.5 kg, this handheld cleaning head offers exceptional portability.The cleaning head is equipped with a replaceable auto-focus feature that is seamlessly integrated into the automation process.
- The controlling software offers a wide range of language options, with over 20 mainstream languages to choose from.Users have the flexibility to adjust important parameters such as laser power, pulse width, and light output frequency. This versatile selection of cleaning shapes allows users to tailor their cleaning approach to specific requirements, ensuring thorough and precise cleaning results
Specification
| Max average power(W) | 100 | 200 |
| Output central wavelength(nm) | 1064±5 | 1064±5 |
| Beam quality(M2) | ≤1.6 | ≤1.8 |
| Power adjustment range(%) | 10-100 | 10-100 |
| Output power instability(%) | ≤5 | ≤5 |
| Pulse repetition rate(kHz) | 20-400 | 20-2000 |
| Pulse length(ns) | 10/20/30/60/100/200/250/350 Optional | 10/30/60/240 Optional |
| Max pulse energy(mJ) | 1 | 1 |
| Fibre length(m) | 3 | 3/5 |
| Laser safety classification | 4 | 4 |
| Cooling method | Air-cooled | Air-cooled |
FAQ
1. How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2. How long is the cable?
Different laser sources have different options. For example, the normal cable length of raycus and max is about 9 meters.
3. How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4. Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address. We will send more detailed pictures to your email.
5. Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
