Handheld 100W 300W Laser Cleaning Machine Air Cooling Method
Handheld Pulse Fiber Laser Cleaning Machines 100W 300W Rust Paint Oil Dirt Removal

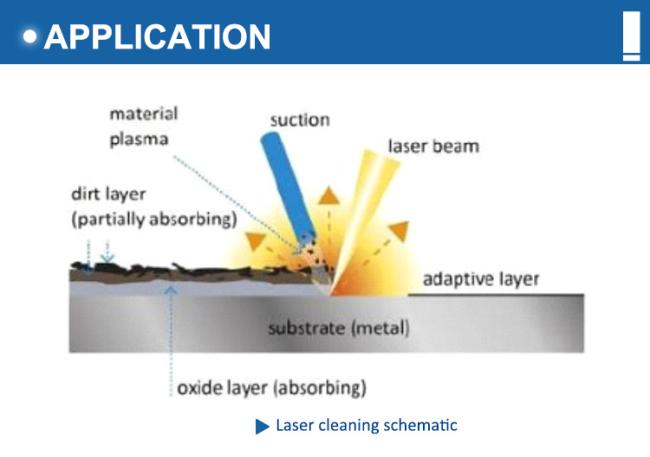

Our laser cleaning system offers a range of benefits: it provides a no-touch cleaning solution that is precise and efficient. With no consumables required, it is both safe and environmentally friendly. The system is user-friendly and features an ergonomic design for ease of operation. It ensures high cleaning efficiency, and its stability guarantees reliable performance. Additionally, there is an optional mobile battery module available for added convenience.
Advantages
Laser Welding Head: High sensitivity touch screen integrated on welding head, remotely change parameters, no need to come back again to the main control panel, more convenient to operate.
Storage Box: There are optical fiber and cleaning head storage box at the top of the cleaning machine, storage optical fiber and cleaning head, convenient transportation, and a concise appearance.
Parameters
| Operating environment | |
| Supply voltage | Single-phase 220V±10%, 50/60Hz AC |
| Overall power consumption | ≤800W |
| Operating ambient temperature | 5℃～40℃ |
| Ambient humidity | ≤80% |
| Optical parameters | |
| Laser average power | ≥100W |
| Power instability | ＜5% |
| Laser working mode | Pulse |
| Pulse width | 2-500ns adjustable |
| Maximum single pulse energy | 1.5mJ |
| Power adjustment range (%) | 0-100 (gradually adjustable) |
| Frequency adjustment range (kHz) | 1-4000 (gradually adjustable) |
| Fiber length | 3m |
| Cooling method | Air cooling |
| Cleaning head parameters | |
| Scanning range (length*width) |
0-100mm, continuously adjustable; Dual axis supports 8 scanning modes; |
| Scanning frequency | The highest is not lower than 300Hz |
| Field lens focal length (mm) | 160mm (210mm/254mm/330mm/420mm optional) |
| Depth of focus | About 5mm |
| Mechanical parameters | |
| Machine size (length, width and height) | About 770mm*375mm*800mm |
| Dimensions after packaging (length, width and height) | About 870mm*480mm*960mm |
| Machine weight | About 45KG |
| Packaged weight | About 85KG |
| Cleaning head weight | ＜1.8Kg |
| Operation method | Handheld/Automated |
FAQ
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder? We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
