Jewelry Spot Laser Welder Mini Desktop Jewelry Laser Welding Repair Machine For Gold Silver Jewelry

Price Negotiable
Price: Negotiable
MOQ: 1 SET
Delivery Time: 5-9 working days
Brand: Rise laser
Product Description

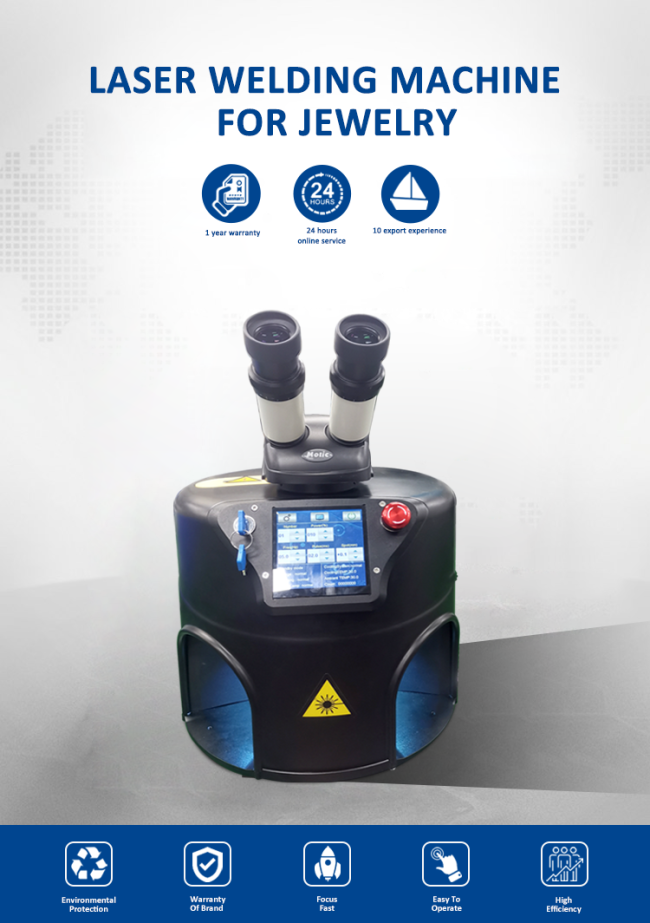

Jewelry Spot Laser Welding Machine:

1. Compact and Portable: The Magic Box is a compact spot welding machine designed for terminal use. Weighing just 13 kilograms, it's remarkably easy to transport.

2. Efficient Cooling: This machine employs a unique cooling system using coolant, eliminating the need to add water, simplifying maintenance.

3. Steady Display: The Magic Box features an electronic CCD display screen that remains stable even when the machine emits light, ensuring a comfortable user experience.

4. Integrated Parameter Settings: Designed for user convenience, it integrates parameter settings, enabling easy adjustments for better welding results during work.

5. Customization Options: Personalize your machine by adding your own logo or custom design to the exterior.

6. Warranty and Support: The entire machine is backed by a one-year warranty, and online technical support is available for post-purchase assistance.

7. No Minimum Order Requirement: There's no need for a minimum order quantity (MOQ), and the product is available at wholesale prices. Feel free to get in touch with us for wholesale pricing details.

This revised version provides a concise overview of the key features and benefits of The Magic Box spot welding machine, making it suitable for individuals or businesses interested in the product.

Q&A:

1.How long is the warranty period? Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable? Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded 1-8mm thick metal materials.
4.Is there a wire feeder? We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded? Yes, it can.
6.Packaging All our machines are packed in wooden boxes.
7.Language interface Supports language customization, etc. You can also translate and insert to software.

Laser Type
1064nm YAG Laser
Beam Diameter
0.2-2.0mm
Pulse Width
0.1-10ms
Frequency
1.0~10.0Hz Continuously Adjustable
Maximum Laser Pulse Energy
40J
Host Power Consumption
≤1.5KW
Cooling System
Convective air cooling
Pump Source
Xenon lamp
Aiming and Positioning
Microscope + HD digital CCD camera system
Operating Mode
Touch Control
Display Touch Screen
10X high quality colorful Digital CCD
Operating Language
English, Chinese
Electrical Connection Values
AC220V ± 5%, 50HZ / 60HZ

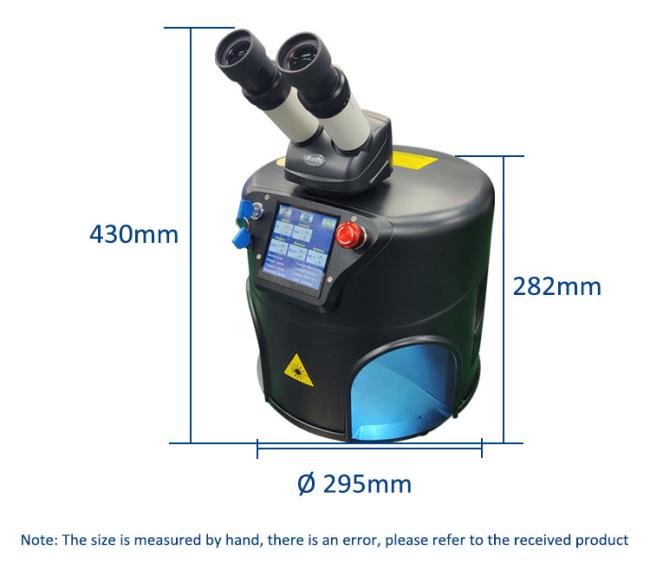

Machine Dimension
Ø295mm x H282mm
Wooden Package Dimension
40x45x48CM
Machine Net Weight
13.5KG
Operating Environmental Temperature
≤45℃
Humidity
< 90% non-condensing
Application
Welding and repairing all kinds of jewelry and metal parts
