^{Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine}

^{BT230CUT SERIES}

^{The series of laser heads BT230 are released by Switzerland RAYTOOLS AG in 2014, which are suitable for small and medium power fiber lasers in industrial applications. The heads have diversification interface settings that allow with a variety of fiber lasers. The optimization of optical design and digital height sensor can make cutting more efficiently.}

^{Magnetic breakaway crash protection can be selected. When a collision occurs, the cutting head and the machine or the robot can be separated reliably, the signal will be output in time and the power supply will be cut off automatically.}

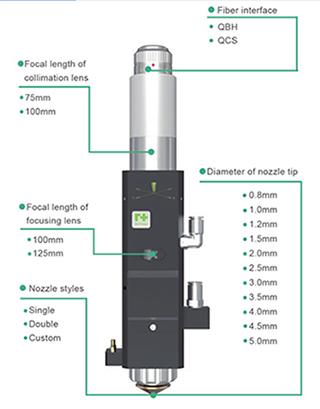

^{Features of laser cutting head:}

^{• Optimized optical configuration and smooth and efficient}

^{airflow design.}

^{• Knob type of focus adjustment, meticulous and flexible,}

^{Adjustable range is 15mm, accuracy is 0.05mm.}

^{• Drawer-type of lens mount, quick and easy access to the}

^{cover glass.}

^{• Modular design, can be equipped with crash protection}

^devices.

^{• Optional elongated nozzle link for 3D cutting.}

^{• Optional with 2D/3D magnetic breakaway crash protection.}

^{• With a variety of optical interfaces, can be adapted with a variety of fiber lasers.}

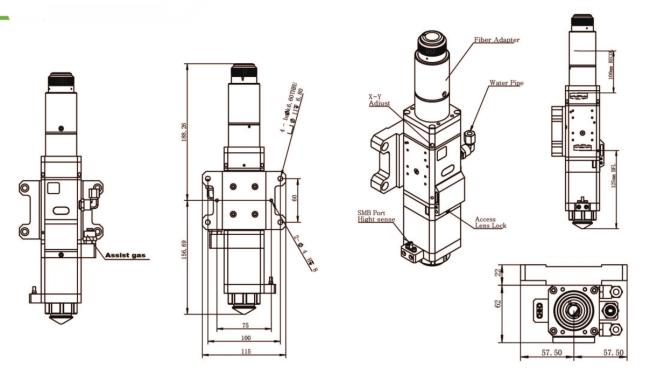

^{Technical Parameters:}
