Accurate Industrial Laser Cutting Machine 1080nm Laser Wavelength Energy Saving

Price Negotiable
Price: negotiation
MOQ: 1
Delivery Time: 7-15 days
Brand: Rise Laser
Product Description



Full-Closed Fiber Laser Cutting Machine With Double Table





Product Desciption:



Equipped with high/super power laser device, efficient thick plate cutting is no longer a dream, thin plate cutting is more speedy; Riselaser database of cutting process will provide you with data support of performance and energy saving to save your cutting cost. Tailor-made high power laser machine for customers, its maximum cutting range includes 50mm aluminium plate, 30mm stainless steel and 25mm carbon steel plate.



Machine bed focuses on processability, stability and damping capacity. Q235A is a low carbon steel, the damping capacity is low. While gray iron has high carbon content,and the main form of carbon is flake graphite, this structure could improve shock absorption and wear resistance and reduce wastage of machine bed during processing.



All-in-one-shaped casting process after aging treatment,we can ignore its heat induced internal stress,that is to say it has high stability and could maintain machine tool accuracy.



While casting lathe bed is integrated with single material, it can choose optimal force bearing point and supporting structure to make the whole mechanical property of lathe bed perfect.







Specifications:

model 1530
Laser wavelength 1080nm
Cutting thickness 0.2-16mm
Laser output power 1000W
Maximum processing range 3000 *1500mm
Machine drive mode imported rack gear and pinon drive
Y X. axis positioning accuracy ±0.01mm
X.Y axis repeat positioning accuracy ±0.01mm
Power supply mode 380V / 50Hz
Maximum cutting speed 45m/min
Minimum cutting line width 0.02mm
Cooling mode 3P Water cooling

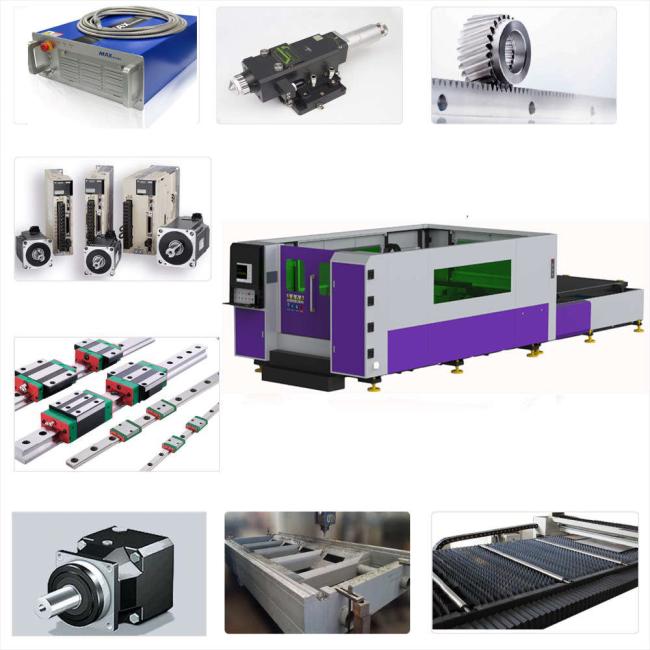

Accessories:

Applications Industrial:

Sheet metal processing, die - cutting board processing, electronics, electrical, aerospace, machinery, elevators, automobiles, ships, tools processing, subway accessories, oil machinery, food machinery, craft gift, decoration, advertising, metal processing and other processing industries.
