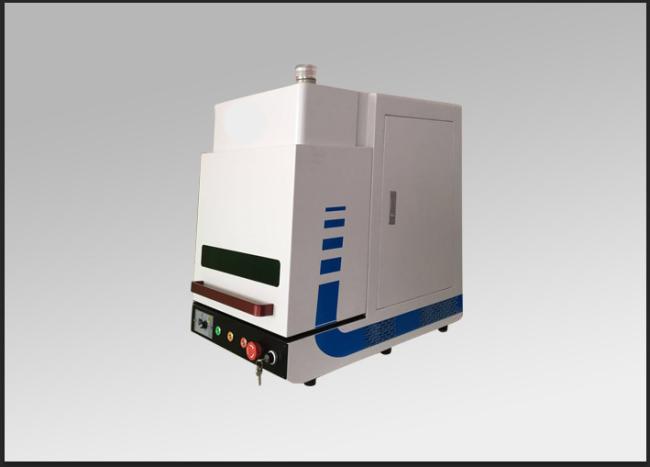

Features of enclosed type fiber laser marking machine

1. Industrial machine type, popular layout, excellent effect of dust proof.

2. All-in-one design of electric cabinet and working table.

3. High space between lifting table and working table, especially used for marking on small size work piece.

4. One Fiber marker can work for more than 10 years without any consumables.

Application Materials

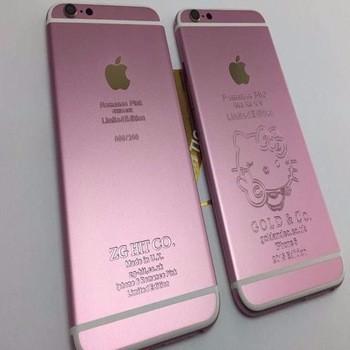

laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.

Applicable Industries

Mechanical Parts:

Bearings, Gears, Standard Parts, Motor, etc.

Instrument:

Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools:

Knives, Tools, Measuring Tools, Cutting Tools, etc.

Daily Necessities:

Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Automobile Parts:

Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

Electronic Components:

Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

Advantages

1) Small size and compact structure, convenient to move.

2) Long lifespan of fiber laser source: 100 000 hours

3) good scanning galvanometer, with good seal, small volume, compact.

4) good Scaps controller, USB interface, swift and stable transmission, can work with a Laptop.

5) High Precision: upto 0.0012mm, bring you the fantastic and satisfied marking effect.

6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.

7) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

9) The fiber laser beam no need to adjust the laser optical path.

10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.

11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..

12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.

13) Deeper Marking: Max. 1.2mm stainless steel, suitable for the industries which needs high precition and depth marking effect.

Technical Parameters

Laser Wavelength

1064nm

Marking Area

110mm*110mm

Optional Marking Area

70mm*70mm / 100mm*100mm / 150mm*150mm

Marking Depth

≤1.0mm

Marking Speed

800 standard characters/second

Minimum Line Width

0.012mm

Minimum Character

0.15mm

Repeated Precision

±0.003mm

Life-span of Fiber Laser Module

100 000hours

Beam Quality

M2 <1.5

Focus Spot Diameter

<0.01mm

Output Power of Laser

10%~100% continuously to be adjusted

System Operation Environment

Windows XP / W7--32/64bits / W8--32/64bits

Cooling Mode

Air cooling--Built-in

Temperature of Operation Environment

15℃~35℃

Power Input

220V / 50HZ / single phase or 110V / 60HZ / single phase

Power Requirement

<400W

Communication Interface

USB

Machine Dimension/after package

650mm*210mm*550mm/880*420*700mm

Net Weight/gross weight

30KG/53kgs

Optional (Not free of charge)

Rotary Device, Moving Table, other customized Automation
