PC Control System Desktop Laser Engraving Machine 2 Years Guarantee With CE / ISO
2 Years Guarantee Fiber Laser Marking Machine With CE and ISO
Applicable Materials
Metals and alloys (carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc, etc.), rare metal and alloy steel (gold, silver, titanium, etc.) and some non-metal (plastic, PMMA, etc.), special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy).
Applicable Industries
Electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molding, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes.

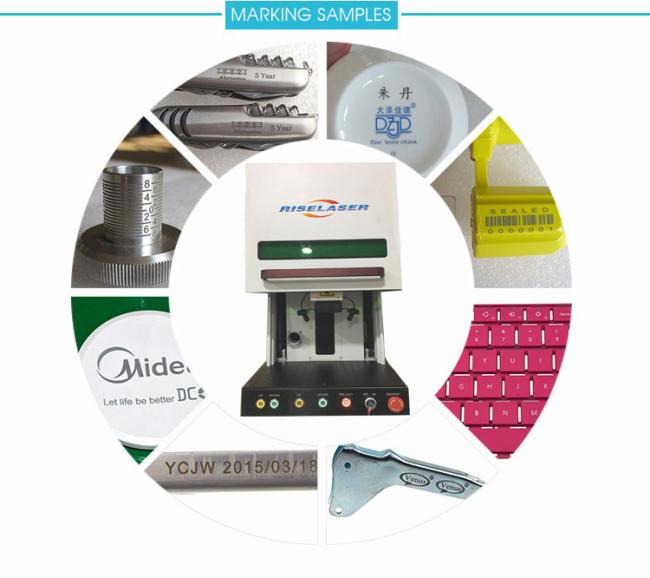

Marking Samples of Fiber Laser Marking Machine

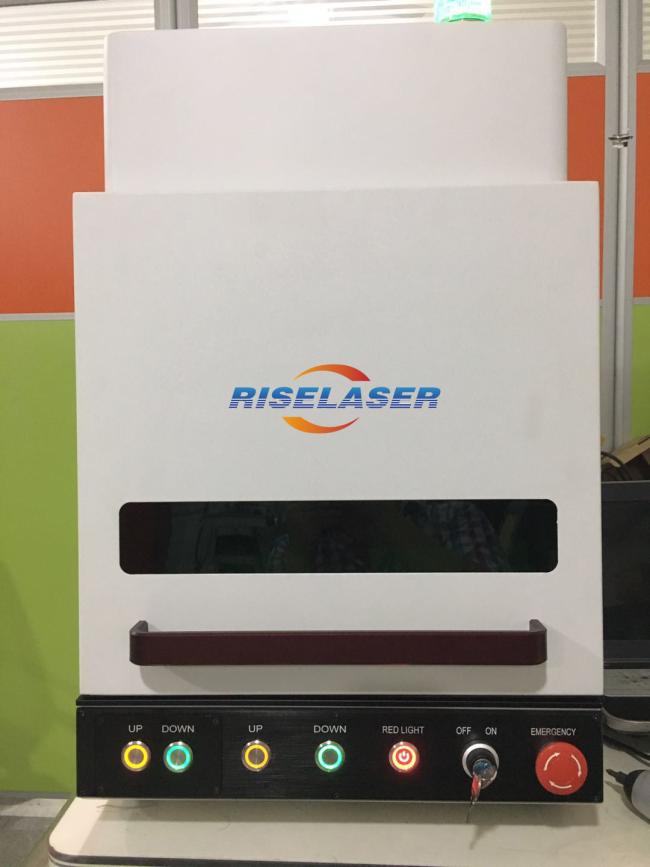

Details of Fiber Laser Marking Machine
Features:
-
Pulse fiber laser source; long lifetime (100,000 hours/around 22 years if 12 hours' working time per day); without consumables; cost effective
-
Professional and powful control system. It can mark logo, character, serial number, bar code and data matrix on both metals and some non-metals. It can meet different marking requirements.
-
English operation interface with easy operation.
-
Fast marking speed; high marking precision
-
Permanent marking, won't be wiped out by sun or rain, convenient to trace.
Specifications:
|
Wavelength |
1064nm |
|
Fiber Laser Source |
IPG; Raycus; JPT; Max (optional) |
|
Laser Power |
10W; 20W; 30W; 50W; 60W (optional) |
|
Marking Area |
110mmx110mm; 200mmx200mm; 300mmx300mm (optional) |
|
Min. Line Width |
0.03mm |
|
Min. Character Size |
0.5mm |
|
Marking Speed |
≤16000mm/s |
|
Pulse Width |
≤60us |
|
Repetition Positioning Accuracy |
10urad |
|
Laser Type |
Pulse Laser |
|
Laser Mode |
Single Mode |
|
Positioning Mode |
Red Beam |
|
Cooling Way |
Air Cooling |
|
Power Supply |
Single Phase AC 220V, 50/60Hz |
Configurations:
| 1 | Laser Source(IPG/Raycus/JPT/Max 10W/20W/30W/50W/60W) |
| 2 | Scan Head (High speed scan head adopting SCANLAB Technology) |
| 3 | Field Lens (F160, F254, F290, F330, F420) |
| 4 | Operation System(WIN XP/7/8/10 English Version) |
| 5 | Marking Software(EZCAD, Engish Version) |

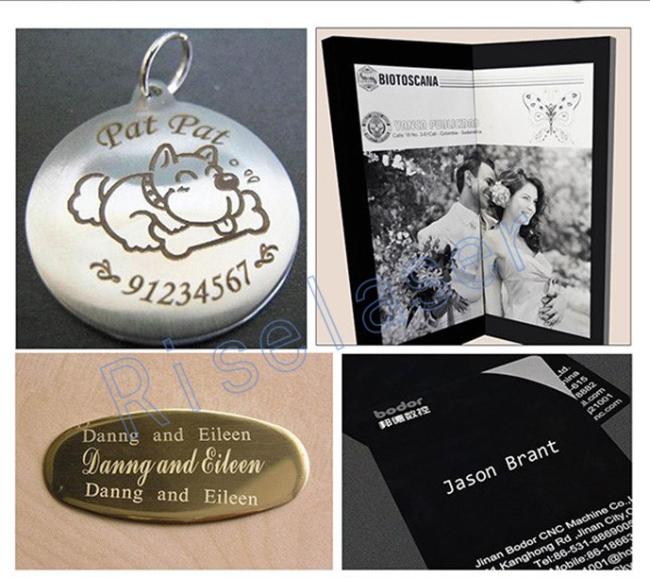

Samples:
