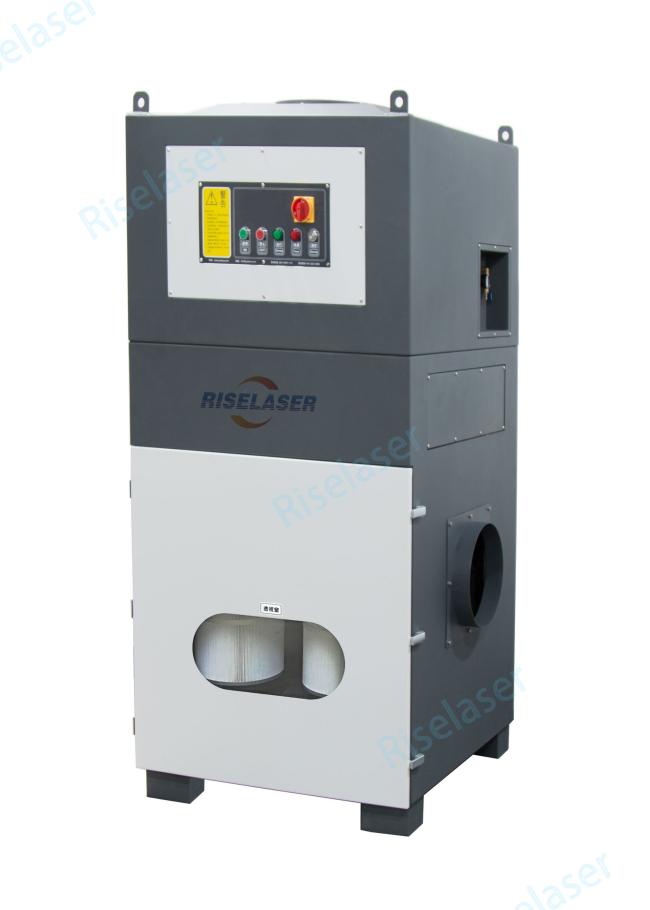

Specially Made for Laser Cutting Machine , Laser Fume Extraction System

RL-DF series of products is featured by beautiful appearance, large air volume and pulsed back blowing dust. It adopts integrated cabinet structure and beautiful appearance. It is specially designed for floating dust in powder industry, chemical industry, metal processing industry and woodworking furniture industry.Equipped with Siemens motor and dongli polyester filter cartridge to ensure high filtering accuracy and efficiency.​

Characteristics

• Siemens motor, continuous escort

For power system, the three-phase 380V voltage adopts Siemens three-phase asynchronous motor, and is equipped with specially customized aluminum alloy impeller. The design features perfect combination of negative pressure and flow rate, stable operation, low fault rate and low noise, and can work continuously for 24 hours.

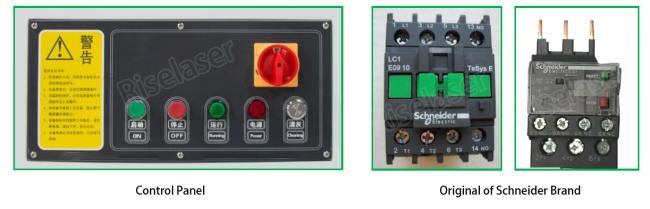

• Electrical control system, quality assurance

In terms of electrical system, the main electronic control components adopt international famous brand -- French schneider products.The motor can realize independent control of the electric box, with built-in power switch, thermal overload protection, phase-missing and anti-equivalent phase-sequence protection. The control panel is simple and generous, and can easily realize remote control, linkage control and other functions.​

• Drawer type dust collection box, practical and convenient

The dust collection box adopts drawer type structure. When the dust accumulates, open the door plate, pull out the dust collection box for dust cleaning, and then put the dust collection box in.Convenient, quick and practical.

• Filter cartridge filter, high filtering accuracy

For the filtration system, the filter cylinder type filter is used. Standard polyester fiber oil proof and waterproof material, the filtering accuracy of dust with the equivalent diameter above 3 microns is more than 99%, and higher filtering precision can be selected.

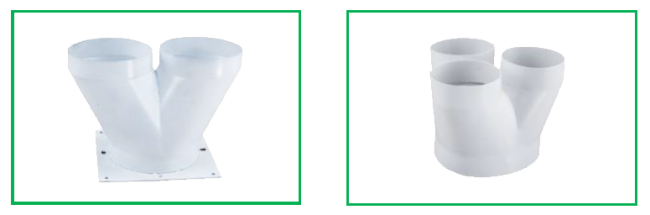

• Custom vacuum mouth, as you need

Advantage

• 7.5kw standard configuration

• Wrinkle grey + wrinkle white standard

• Double door and double dust chamber design, cleaning portable

• Siemens motor + schneider electric control

• The special fan muffler and noise canceling device ensures the equipment to operate with low noise

Technical parameter

Typical Applications

Certificate
