0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15-30 working days
Brand:
Riselaser
Product Description
0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate

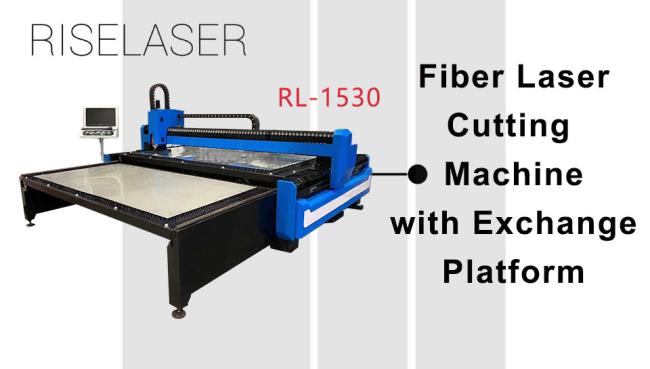

Introduction of RL-1530
■ Tube welding.
■ Total machine weight 3.5 tons.
■ Italian COLGAR machine milling boring.
■ Machine error accuracy 0.05mm.
■ With 24 hours quenching process.
￭ Support max moving speed 70m/min.
Main Features
1.Compared with the traditional design, RL-1530 has the same working area and saves space.
2.Riselaser's exclusive NEW design, equipped with short-range exchange platform. Faster, energy-saving, durable and reliable.
3.The laser power can be customized according to the material and its thickness.

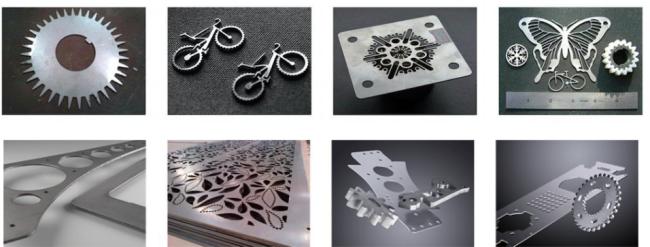

4.The cutting of special-shaped parts is no problem.
Technical Parameters
| Model | RL1530 |
| Laser Wavelength | 1070 nm |
| Power | 1500W |
| Beam Quality | ＜0.373mrad |
| Max cutting thickness | 15mm carbon steel |
| Working area | 2500mm×1300mm |
| Positioning Accuracy | ≤±0.05 ㎜/m |
| Repeatition Accuracy | ≤±0.05 ㎜/m |
| Power Supply | Three-phase four-wire AC 380V/50Hz,50Hz±1%,60A |
| Pulse frequency | 1-500HZ Continuously adjustable |
| Energy instability | ≤2% |
| Minimum cutting line width | 0.1mm(Material below 0.4mm) |
| Maximum idling speed | 50m/min |
| Maximum acceleration | 1G |
| Maximum cutting speed | 20m/min(Depends on different materials) |
| Continuous working time | ≥20H |
| Mechanical accuracy of worktable | ±0.03mm |
| Software | The software has the function of selecting segments |
| Equipment weight (estimated value) | 3500KG |
| Power consumption | 13 kW |
Main parts
| Motor | Guide | Rack | Cutting head | Chiller | Software | Laser Source | |
| Yaskawa | PMI | DIN-6 | TONY | S&A | Cypcut | MAX |
After-sales Service
Warranty: 1 year for the whole machine, but lens/mirror/nozzle without warranty.
Certificate support: CE
Manuals and CD along with machine,
After-sales department with English speakers supports customer on-line.
We are looking forward to serve you and please don not hesitate to contact us for more information.
