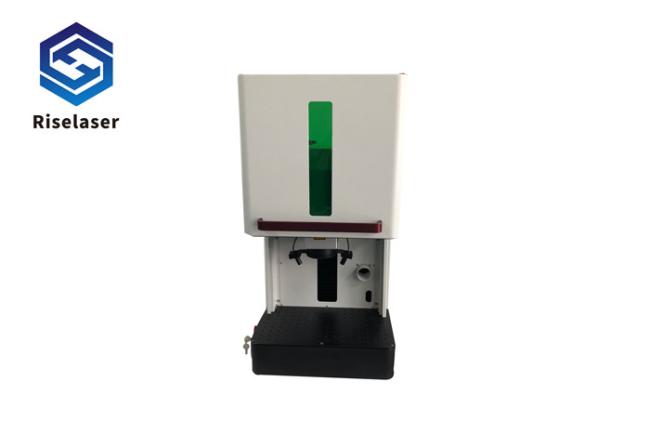

20w Enclosed Fiber Laser Marking Machine For Metal IC Card Industry
20w Enclosed Fiber Laser Marking Machine For Metal IC Card Industry
Product Description
Characteristics of fiber laser marking machine
Suitable for all kinds of metal materials, some non-metal materials.
Fiber laser oscillator has the advantages of high beam quality and high reliability. It is suitable for the machining field with high requirements of marking depth, smoothness and accuracy. Such as
Electronic components industry
Medical equipment industry
Glasses, watches and clocks
IC card industry
Plastic tool industry
Kitchen and bathroom appliances
Max marking range is optional : 110*110mm/150*150mm/175*175mm/300*300mm.
Detailed technical parameters
| Laser wavelength | 1064nm |
| laser power | 20w/30w/50w |
| Laser repetition rate | 20kHz-60kHz |
| Minimum line width | 0.012mm |
| Marking speed | ≤10000mm/s |
| Marking speed | ≤ 0.4mm (by materials) |
| Repeatability accuracy | ±0.001mm |
| Marking range | 110mmx110mm |
| Cooling method | Air cooling |
| Power supply | 220V/ single phase /50Hz/3A |
| Power | 400W (power saving) |
| file format | All font / font of WINDOWS operating system font library |
| operating system | Windows xp/7system |
| Product Size | 500*900*900mm |
| Net Weight | 80KG |
| Warranty | 2 Years |
| Laser Source | Max |
| Delivery time | 7- 12 Work Days |
| Packaging Details | Wooden Case, 96KG |
| Operating temperature | 10-35°C |
Main Features
1. Totally enclosed design to minimize the impact on the environment when it works;

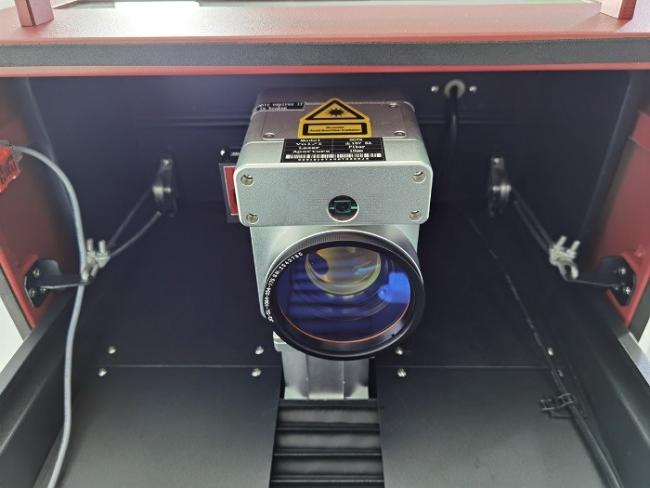

2. Equipped with special one eye system, integrated with laser, it makes it easier for you to observe the working state of the machine during operation;
3. Modular design, independent laser generator and lifting table, more flexible, can be marked on a larger area and complex surface. Internal air cooling, small floor area, easy installation;
4. The embedded operating system with advanced performance and powerful control system can meet the needs of most industrial applications in the market;
5. High photoelectric conversion efficiency, simple operation, compact structure, support harsh working environment, no consumables.
6. Fiber laser marking machine is easy to carry and transport.

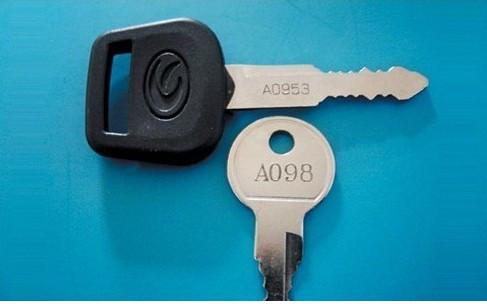

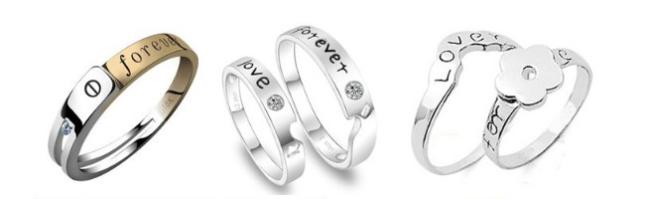

The Real Laser Marking Samples for Reference as Follows:
