100W 50J Laser Welding Machine Desktop Jewelry 240v Spot Welder
100W 50J Laser Welding Machine Desktop Jewelry 240v Spot Welder
Product Description

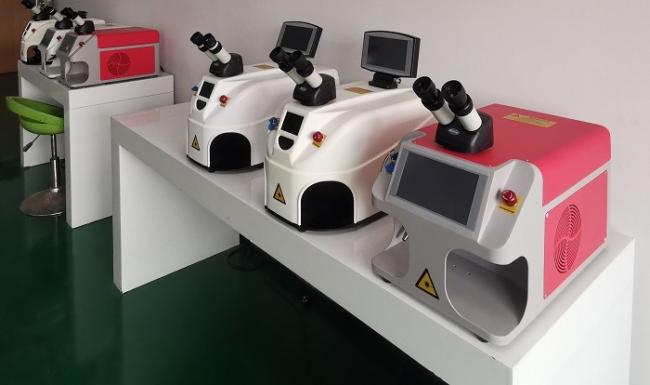

Desktop jewelry laser spot welding machine is a laser welding equipment dedicated to the metal jewelry industry. It is small in size and easy to move.
It is mainly used for laser welding of gold jewelry, laser welding of silver jewelry, laser welding of titanium alloy jewelry, laser welding of stainless steel jewelry and manual laser welding and processing of other small metal parts. It will also be used for small area welding of mobile phones and 3C products.
The welding features are high welding accuracy, low energy consumption, firm welding, and small size.
Application
Jewelry industry: changing size, repairing, repairing gaps, repairing sand holes, welding bracelets, necklaces, rings, earrings, etc.
Mobile 3C
Spcification
| Model Number | RL-Y60 |
| Laser Wavelength | 1064nm |
| Spotlight Cavity Reflector | Metal Cavity |
| Max. Laser Power | 100W |
| Pulse Width | 0.1-20ms |
| Laser Frequency | 1-50HZ |
| Adjusting scope of light spot | 0.1~0.6mm |
| Aim Operation | Round Point Cursor |
| Cooling System | Built-in water cooling |
| Rated Power | 3.5KW |
| Lifetime | 3,000,000 times |
| Power Supply | 220V 50HZ |
| Dimension | Machine(51*28*29cm) |
Feature:
1. The core components are made of imported ceramics, with stable performance and long life, which is an efficient and economical processing solution.
2. The welding speed is fast, which greatly improves the welding efficiency and shortens the welding time of a single piece.
3. The welding quality is high, the welding seam is beautiful, no secondary processing is required, and the qualified rate of the finished product is greatly improved.
4. Can be used for refractory materials, especially micro parts and jewelry stores
