Energy Saving 50 Watt Fiber Laser Marking Machine With Raycus Jpt Source
Energy Saving 50 Watt Fiber Laser Marking Machine With Raycus Jpt Source
Product features of Energy saving portable engraver with 20w 30w 50w raycus jpt source
- Printable numbers, characters, letters, graphics support automatic encoding, serial numbers, batch numbers, dates, barcodes, and QR codes will automatically jump to numbers.
- Our program has a variety of power fiber lasers, you can get different laser effects (metal, plastic, ceramic, etc.) on most materials. Laser application.
- Support PLT, PCX, DXF, BMP and other files, directly use SHX, TTF fonts.
- Support barcode fonts.
- Extensible software flight marking.
- You may need to set the automatic serial number, date, and time according to the production situation.
- You can read text data directly through the serial port.
- Powerful filling function, filling ring support.
- Open multiple languages, can easily support world languages.
- Automatic segmentation text function, which can adapt to complex processing conditions.
- Manage your marking process, from workshop to automated production line
- Production mode allows you to easily complete multiple tasks: repeated inspections, historical documents, operator/manager landing from an existing system (measuring equipment), or obtaining a data reading gun.
- Red preview, you can preview the red function to show the content printed on the workpiece in advance.
Tech datas
| Laser Source | Fiber Laser |
| Output Power | 20W / 30W / 50W / 60W / 70W /100W |
| Wavelength | 1060nm |
| Repeat Frequency | 10khz--100khz |
| Pulse Energy | 2mJ |
| Laser Class | IV |
| Resolution | 18μ |
| Repeatability | 50μ |
| Marking Scope | 110mmx 110mm / 175mmx 175mm (optional) / 210mm*210mm / 300mm*300mm |
| Linear Speed | 800 character/ s |
| Marking Linear Speed | ≤12,000mm/s |
| Marking Depth | Max. 1.0- 1.5mm (hard steel) |
| Min. Line Width | 0.012mm |
| Min. Character Size | 0.15mm |
| Repeat Accuracy | ±0.003mm |
| Input Power | 0.5kw |
| Electrical Source | 220V / Single-Phase Circuit / 50/60Hz /3-10A |
Where to use the Energy saving portable engraver with 20w 30w 50w raycus jpt source

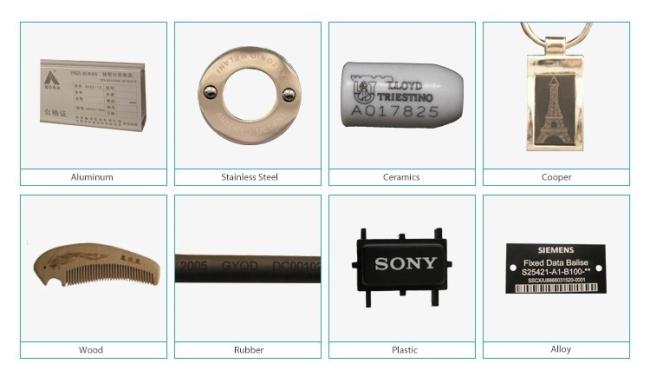

This mobile fiber laser marking machine 20w 30w 50w 70w can be used to mark your company's LOGO, serial number, barcode on any metal material (such as stainless steel, titanium, brass, gold, silver, aluminum, many engineering plastics) And other exquisite patterned products, such as mobile phone cases and chargers, electronic product components, consumer electronic product shells, etc.
Our laser marking machine uses the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w, 70W optional. The estimated life of the laser source exceeds 100,000 hours

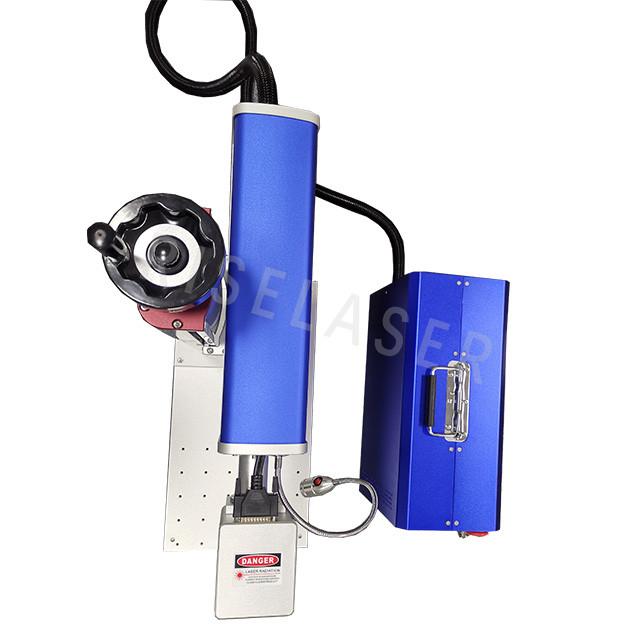

This portable desktop fiber metal laser marking machine is very easy to operate, convenient to use, small in size, light in weight and movable.
