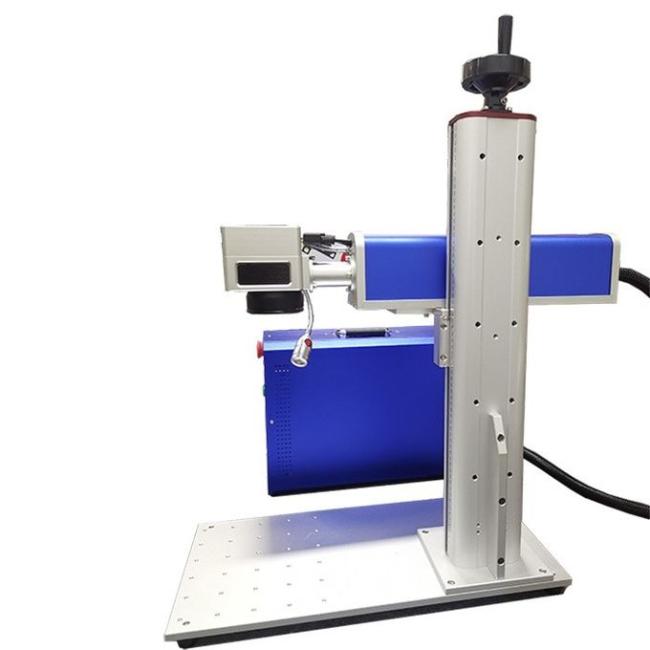

Mini Metal Fiber Laser Marking Machine 30w Fiber Laser Engraver

Price Negotiable
Price: negotiation
MOQ: 1 SET
Delivery Time: 5-9 working days
Brand: Riselaser
Product Description

Mini Metal Fiber Laser Marking Machine 30w Fiber Laser Engraver





The term "laser marking" is also used as a general term to cover a wide range of surface treatment techniques including printing, thermal imprinting and laser bonding. The machines for laser engraving and laser marking are largely the same, and they will differ in power.



specification of marking engraving mini fiber laser marking machine

Model RL-PS series   Laser Power 10W 20W 30W 50W 70w
Laser Wavelength 1064nm±10nm Q-frequency 20KHz~100KHz
Divergence 0.3mard Marking Range 110*110mm /200*200mm
Mimum Line Width 0.01mm Minimum Character 0.1mm
Marking Speed 10000mm/s Marking Depth 0~0.5mm
Engraving Line Speed ≤7000mm/s Repeatability Accuracy ±0.001mm
Beam Quality M2:1.2~1.8 Working Voltage 220V±10%/50Hz/4A
Unit Power <0.5kw Laser module life >100000hours



Marking samples



How it work



FAQ

Q1: What guarantee is there if the laser marking machine fails?
The machine has a one-year warranty. If it fails, usually, based on customer feedback, our technicians will find out where the problem is. If the problem is caused by a quality failure, other parts except the wearing parts will be replaced free of charge.
Q2: This model is not suitable for me. Do you have more models available?
Yes, we can provide many models. Some parts can also be replaced according to your needs. If the above is the most popular model can not meet your requirements. Please tell us your needs, we have the ability to make special according to your requirements!
Q3: How about the documents after delivery?
After shipment, we will send all original documents to you via DHL, including packing list, commercial invoice, bill of lading and other proofs required by the customer.
Q4: How long is the delivery time of the laser marking machine?
For standard machines, it will be 7-10 days; for non-standard machines and machines customized according to customer specific requirements, it will be 15 to 30 days.
