Anti Reflective 20w Metal Fiber Laser Cutting Machine Pet Bottle Marker
Products discription

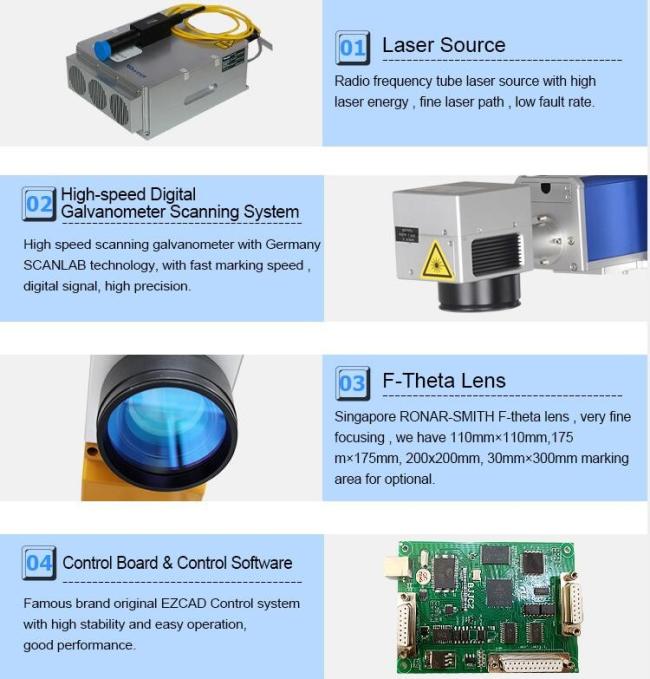

1. The fiber laser generator is highly integrated, with superior laser beam and uniform power density. The output laser power is stable. This design greatly improves the anti-reflective ability of the machine through the optical isolator and can mark most highly reflective materials (such as aluminum, copper, gold and silver) without shadows or virtual aperture.
2. It adopts advanced high-speed digital scanning galvanometer, which has fast speed, no deviation, small size, good stability, and its performance has reached the international advanced level.
3. Modular design, separate laser generator and elevator, more flexible, can mark larger areas and complex surfaces. The interior is air-cooled, the floor space is small, and it is easy to install.
4. By using the embedded operating system, the performance is ahead of its domestic counterparts, a good touch interface and a powerful control system, can meet the needs of most of the industry application process on the market.
5. High photoelectric conversion efficiency, simple operation, compact structure, support for harsh working environment, no consumables.
Products details
Parameters
| Laser Wavelength | 1064nm |
| Marking Area | 75*75mm 110*110mm 150mm*150mm |
| 175mm*175mm 200*200mm 300*300mm | |
| Marking Depth | ≤1.2mm |
| Marking Speed | 10000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100 000hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
Package
1.Standard wooden boxes with filled sponge inside to protect the packing.
2. The wooden box is free from fumigation and suitable by sea and by air.
3. Custom packing according to customer's requirement.
