6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating
6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating
6KG weight laser marking machine portable wireless marking with simple operating
Features
Wireless marking
● Configure 24V lithium battery to achieve complete wireless
● Under normal use, it can work continuously for 6-8 hours, with strong endurance
● Automatic start-stop design, automatic shutdown after 60 seconds of standby, saving power and reducing consumption
100% portable
● The weight of the whole machine is 6KG, the marking head is only 1.25KG, it is small and light, and can be printed on the go
● Especially suitable for marking large, heavy or difficult-to-process workpieces
● Special suitcase for easy transportation
High-quality laser source
● Using advanced MAX fiber 20W laser source
● High electro-optical conversion efficiency, good output beam quality and high reliability
● It can be flexibly applied to non-metallic materials and some non-metallic materials
Simple operating system
● Riselaser independent coding system, powerful function, simple operation
● Support text, pattern, two-dimensional code, barcode, serial number, graphics, etc.
● The host adopts linux system, which is safe, stable and reliable
Specification of laser marking machine 20w
| Model | RL-20H | |
|
Laser parameters |
Laser Source | MAX 20W |
| Output power | 20W | |
| Beam quality M22 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | |
| Laser wavelength | 1064±5 | |
| Output power stability | ＜3% | |
| Design life | About 100,000 working hours (non-lifetime) | |
|
Optical properties |
Marking range | 80mm |
| Engraving depth | ≤1mm (depending on power and time) | |
| Engraving speed | ≤10000mm/s | |
| Repeat accuracy | ±0.002 | |
| Minimum marking line width | 0. 1mm | |
| Minimum character height | 0.15mm | |
|
Use environment |
Battery life | It can work for 6-8 hours under normal use |
| cooling method | Built-in air cooling | |
| System power supply | 500W / 100-240V / 50/60Hz | |
|
Other parameters |
Operating system | linux operating system |
| File format | The software supports text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input) | |

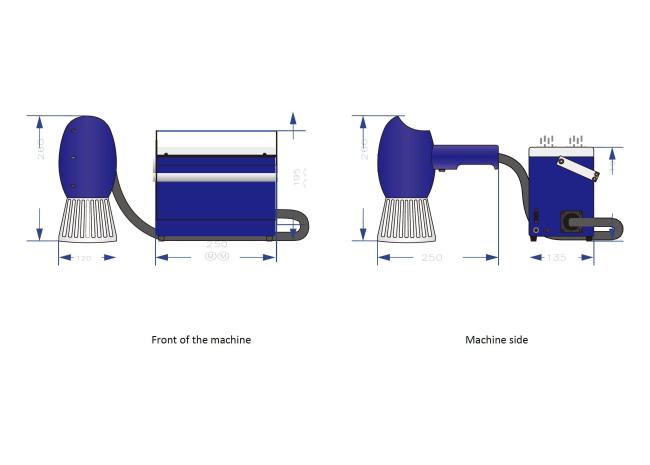

| Dimensions | Control chassis: 250X135X195 mm Marking head: 250X120X260 mm | |
| Total Weight | Machine 6kg, marking head 1.25kg | |
Application of laser marking machine 20w

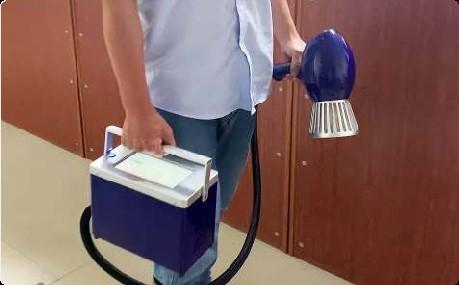

The whole machine weighs 6KG and is light and portable.
Powerful and reliable, the weight of the whole machine is 6 kg, and its marking head is only 1.25 kg. It has an ergonomic grip, comfortable to hold and easy to operate.

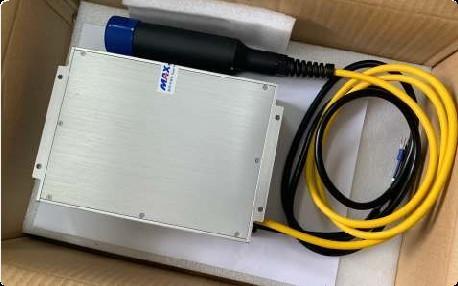

Advanced fiber 20W laser source
Use MAX's 20W fiber laser, the spot quality is good, and the output optical power is stable
Can be flexibly applied to metallic materials and some non-metallic materials
Video of laser marking machine 20w
