1064nm Fiber Laser Marker Machine 20w For Production Date Printing
1064nm Fiber Laser Marker Machine 20w For Production Date Printing
Laser printer fiber laser machine 20w for production date printing
Laser printer fiber laser machine 20w advantages
1. The service life can reach 20000 hours.
2. All accessories are international well-known brands.
3. The software integrates a database of commonly used material label parameters, allowing you to use the equipment more conveniently and efficiently.
4. Small size, perfect function, convenient transportation.
Details of laser marking machine 20w
Specification of laser marking machine 20w
| Model | RL-20H | |
|
Laser parameters |
Laser Source | MAX 20W |
| Output power | 20W | |
| Beam quality M22 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | |
| Laser wavelength | 1064±5 | |
| Output power stability | ＜3% | |
| Design life | About 100,000 working hours (non-lifetime) | |
|
Optical properties |
Marking range | 80mm |
| Engraving depth | ≤1mm (depending on power and time) | |
| Engraving speed | ≤10000mm/s | |
| Repeat accuracy | ±0.002 | |
| Minimum marking line width | 0. 1mm | |
| Minimum character height | 0.15mm | |
|
Use environment |
Battery life | It can work for 6-8 hours under normal use |
| cooling method | Built-in air cooling | |
| System power supply | 500W / 100-240V / 50/60Hz | |
|
Other parameters |
Operating system | linux operating system |
| File format | The software supports text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input) | |

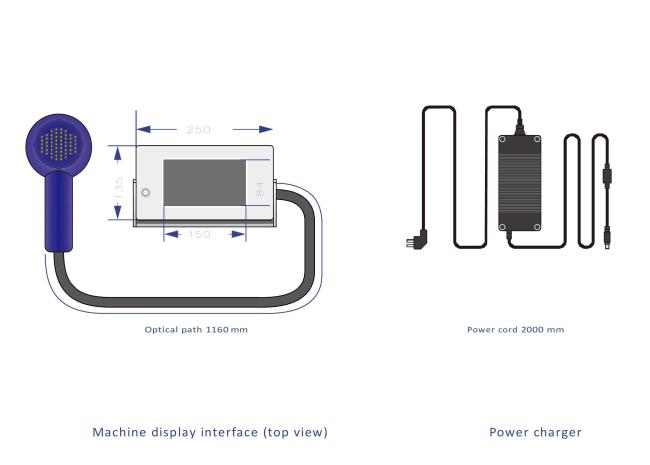

| Dimensions | Control chassis: 250X135X195 mm Marking head: 250X120X260 mm | |
| Total Weight | Machine 6kg, marking head 1.25kg | |
Application of laser marking machine 20w
Diversified marking content, support language customization
Rear USB interface, software support: text, pattern, QR code, barcode, serial number, graphics and other marking content, support operating system language customization
Video of laser marking machine 20w
LOGO can be customized
The boot page of the operating system and the LOGO in the upper left corner can be customized
Laser printer fiber laser machine 20w FAQ
1. How long does it take to learn laser?
The software is easy to learn, there are teaching videos, we can also help you learn laser
online. Usually it takes several hours to operate the laser, but it requires some experimentation and
Make mistakes to understand the speed and power settings for using different materials. So we include
A comprehensive guide to the system with recommended speed and power settings
Used for the various materials you will use.
2. Is the laser machine safe during transportation?
(1) Inner layer: plastic stretch film and white foam.
(2) Medium: small pieces of wood and screws.
(3) Outside: standard export wooden box. Therefore, the laser machine will be sent to you safely. exist
If the machine is damaged, please contact us, we will deal with the replacement as soon as possible
Try to make sure it arrives on time.
3. What should I do if there is a problem with the laser?
We provide a two-year warranty. During the warranty period, we will provide the damaged items free of charge.
After the warranty period, we still provide maintenance services.
4. How deep can it be carved into metal?
All metals can be carved to a certain depth; however, some metals are more
Suitable for deep carving. Softer aluminum material will engrave depth
Several levels. The best way to test your materials is to use our application laboratory.
