1000w Manual Handheld Laser Welding Machine For Stainless Steel Aluminum
1000w Manual Handheld Laser Welding Machine For Stainless Steel Aluminum
Laser Welding Machine 1000w feature:
Features and advantages
1. Fast welding speed, 2~10 times faster than traditional welding;
2. Simple operation, no training required;
3. The weld seam is beautiful and smooth, no need to be polished, which saves your time;
4. No deformation, no welding scar, and the workpiece is welded firmly;
5. Laser welding consumables are less, and the service life is long;
6. Safer and more environmentally friendly.
Laser Welding Machine 1000w Specifications
|
NO.
|
Item
|
Parameter
|
Unit
|
|
1
|
Model name
|
Laser Welding Machine 1000w
|
|
|
2
|
Model type
|
RL-Y1000
|
|
|
3
|
Laser Power
|
1000/1500/2000
|
W
|
|
4
|
Laser wavelength
|
1070
|
nm
|
|
5
|
Fiber core diameter
|
50
|
μm
|
|
6
|
Fiber length
|
10
|
m
|
|
7
|
Laser working mode
|
Continuous / Modulation
|
|
|
8
|
Galvanometer width
|
0.5-6
|
mm
|
|
9
|
Galvo scan speed
|
≤8000
|
mm/s
|
|
10
|
Welding speed
|
0-120
|
mm/s
|
|
11
|
Refrigeration unit
|
Intelligent dual temperature chiller
|
|
|
12
|
Working environment
|
15-35
|
℃
|
| temperature range | |||
|
13
|
Humidity range of working environment
|
＜ 70% non-condensing
|
|
|
14
|
Welding material thickness
|
≤5
|
mm
|
|
15
|
Welding gap requirements
|
≤0.5
|
mm
|

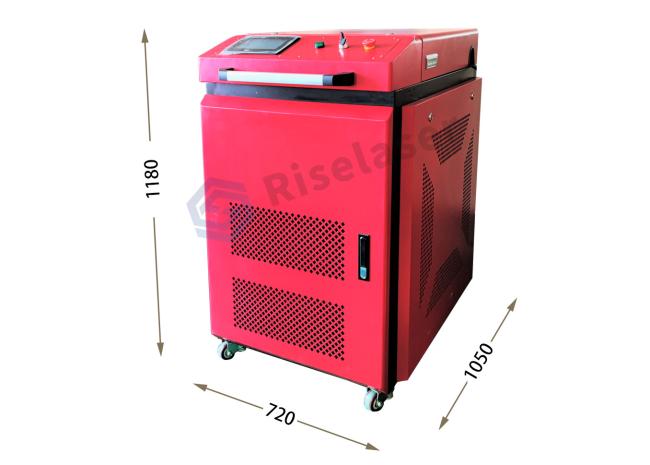

Laser Welding Machine 1000w dimension
Laser welding is a processing method that uses a high-energy density laser beam as a heat source to weld materials. It has the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables.
Laser Welding Machine 1000w Details
Fiber-optic laser
1000W RECI/Raycus/Max laser, two-year warranty
High-quality beam, high power stability, system stability
20μm core diameter, higher electro-optical conversion efficiency
Double swing welding head
Customizable 2mm, 2.5mm, 3mm welding channel width
Special welding nozzle, can realize any part and fillet welding
Infrared positioning, more accurate welding position
Dual temperature chiller
Intelligent temperature control, compressor cooling
LED screen, temperature can be displayed at any time
Simple operation, stable performance, energy saving and high efficiency

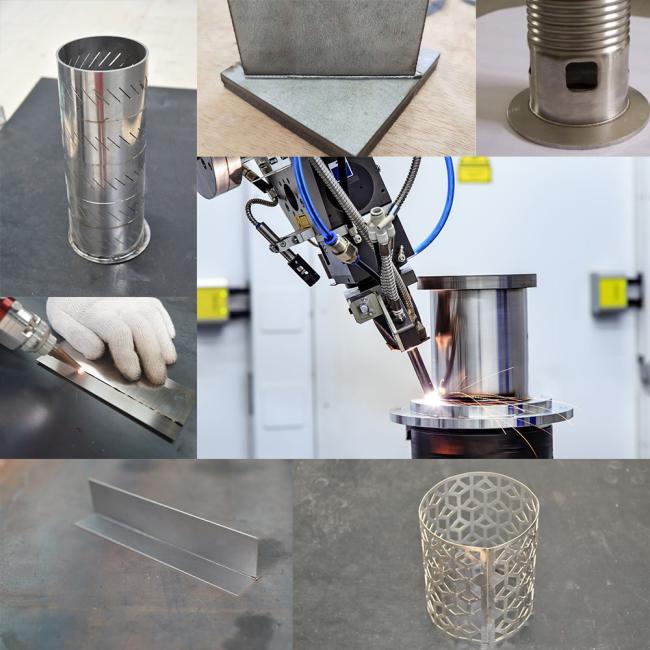

Application
The laser hand-held laser welding machine adopts a new generation of fiber laser and is equipped with a self-developed laser welding head, which fills the gap of hand-held welding in the laser equipment industry. It has the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables. The welding of metal materials such as plates, iron plates, and galvanized plates can perfectly replace traditional argon arc welding and electric welding.
