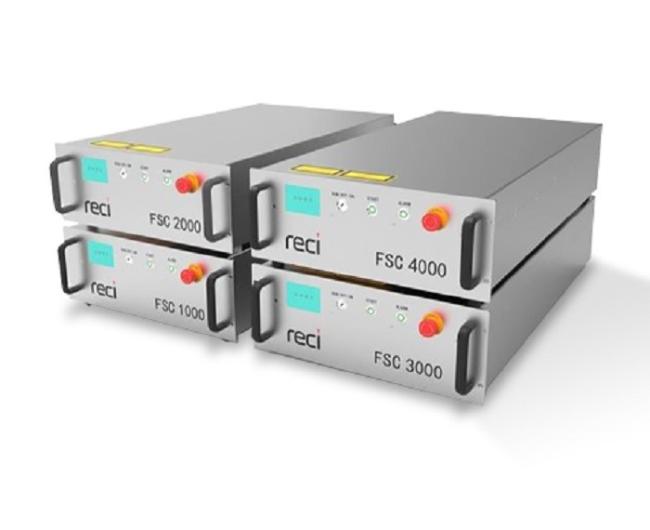

1000W RECI Fiber Laser Generator With 2 Years Warranty Water Cooling
The FSC series of high-power single-mode continuous fiber lasers are completely independently developed and produced by thermal stimulation light.
By solving the limitation of the average power of high-power single-mode fiber lasers, the mode instability (TMI), stimulated Raman scattering (SRS), and beam are further improved.
Bottlenecks such as poor quality have increased the average output power of single-cavity and single-transverse-mode lasers to 4000W.
This series of products integrates high average power, multiple anti-high reflections, high-quality beam quality, and high electro-optical conversion efficiency.

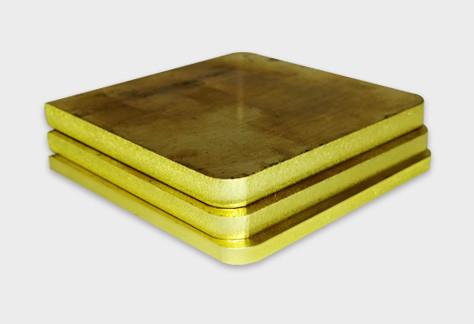

They can be widely used in various occasions such as fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping. Especially when cutting thick metal plates, not only the cutting speed is fast, but also the cutting seam of the plate is thin and the section is bright. Compared with other lasers of the same type on the market, the advantages are very obvious.
| Model | FSC1000 | FSC 1500 | FSC 2000 | FSC 3000 |
| Laser Power(W) | ≥1000 | ≥1500 | ≥2000 | ≥3000 |
| Wavelength(nm) | 1080±3 | |||
| Mode | CW/Optional | |||
| Output power adjustment range(％) | 10-100 | |||
| Maximum frequency(kHz) | 20 | |||
| Power instability(％) | <3 | |||
| Indicating red light power | > 0.5mW | |||
| Fiber output interface | QBH | |||
| Output fiber core diameter(pm) | 20/50 | 50 (30 Optional) | 50 (100 Optional) | |
| Output fiber length(m) | 15 | 20 | ||
| Operating Voltage(VAC) | 220V ±10%,50/60Hz | Three phase 380V ±10%,50/60Hz | ||
| Maximum power consumption(W) | <4000 | <6000 | <8000 | <12000 |
| Working temperature(℃) | 5~40 | |||
| Working environment humidity(％) | <70 | |||
| QBH Cooling water temperature(℃) | Room temperature | |||
| QBH Cooling water flow(L/min) | 1.5〜2.5 (With load) | |||
| Whole machine cooling water temperature(℃) | 25 (Summer 28) | |||
| Whole machine cooling water flow(L/min) | >10 (With load) | >15(With load) | >20 (With load) | >30 (With load) |
| Size:WxHxD (mm)(with hander) | 483x147x754 | 483x147x804 | 483x147x804 | |
| Weight(kg) | <55 | <60 | <75 | <80 |
Application
01 Fine cutting
02 Metal welding
03 Surface treatment
04 Printing, rapid prototyping
