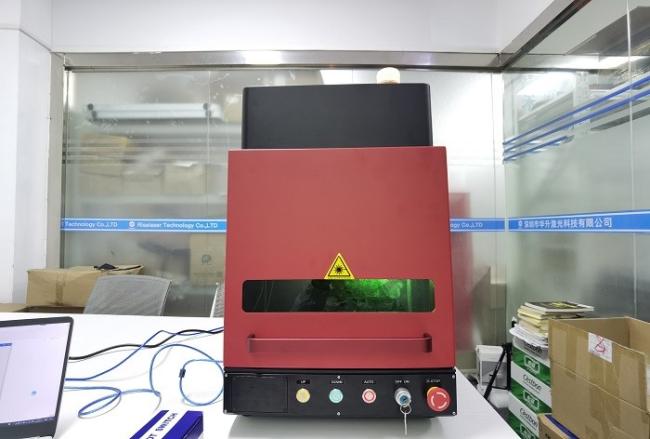

20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function
20w Fiber Laser Marking Machine With Built In Electrical Lift Auto Focus Function
Machine introduction
1. The machine has a long service life, exceeding 100,000 hours.
2. Using air-cooled compact laser source, fast heat dissipation and continuous work
3. The super-quality galvanometer scanning system uses a galvanometer scanner and an electronic control device to obtain high precision and repeatability for correct marking every time, and the performance is more stable.
4. Professional control panel and marking software supporting all windows operating systems. Supports files output by software such as Coreldraw, AutoCAD, Photoshop, etc., and supports multiple file formats such as PLT, DXF, PCX, and BMP.
5. The output power of the machine is stable, the optical mode is good, and the beam quality is excellent.
6. The marking speed is fast, the efficiency is high, and the precision is high.
7. Professional appearance and simple operation.
8. With built-in CCD to help marking position located.
Machine details
Galvo head
Built in LED lamp
Parameter
| Fiber laser marking machine technical parameters | |
| Laser Type | Fiber laser |
| Laser Power | 20W 30W 50W |
| Model | RL-20E, RL-30E, RL-50E |
| Laser Wavelength | 1064nm |
| Marking Area |
75*75mm, 110*110mm, 150mm*150mm 175mm*175mm |
| Marking Depth | ≤1.2mm |
| Marking Speed | 10000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100 000hours |
| Beam Quality | M2 <1.3 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 5%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling Mode | Air cooling--Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Machine Dimension/after package | 920*830*1160mm |
| Net Weight/gross weight | 120/170kg |
| Optional | Rotary Device, Moving Table, other customized Automation |
Application
Fiber laser marking machine Can be used with most metal marking applications, such as
Gold, silver, stainless steel, brass, aluminum, steel, iron, etc., can also be marked on a variety of non-metallic materials, such as ABS, nylon, PES, PVC, Makrolon.
