Small Enclosed 3d Fiber Laser Marking Machine Gold Silver Jewelry
Small Enclosed 3d Fiber Laser Marking Machine Gold Silver Jewelry
What are 2D 2.5D and 3D fiber laser marking and engraving machines?
1) The two-dimensional fiber laser marking engraving machine is widely used for marking logos, text, time, serial numbers and part numbers, QR codes, barcodes, QR codes, bitmaps, on almost all metal and some non-metal materials. Pictures and images. With the electric xy moving table, a large-format engraving area can be obtained, and with a rotating fixture, it can also mark cylindrical objects.
Suitable for carving gold and silver jewelry, firearms, gifts, tumbler cups, fountain pens, auto parts, knives, metal tools and mechanical parts, etc.
When the power is above 30w 50w 60w 80w 100w, the fiber laser can also deep engrave and cut jewelry metals such as gold, silver, titanium, brass, and platinum.
2) 2.5D fiber laser marking and engraving machine is an upgraded system based on 2D laser. Comes with electric Z-axis autofocus function and EZCAD3.0 3D software to realize 3D relief carving function. But the economic cost is much higher than the 3D machine.
3) 3D fiber laser marking engraving machine adopts 3D dynamic focusing galvanometer and 3D software. Compared with ordinary 2D laser machine, ordinary 2D scanning head has only two mirrors, while 3D scanning head has three mirrors. The third mirror can be moved back and forth. This is the key technology for 3D laser marking machines to mark curved surfaces on metals and some non-metals. The prominent functions of the 3D laser marking machine are large-format deep-carved metal, embossed coin molds and curved surface marking. The advantages of high-precision mold metal engraving, large-size metal plate deep engraving, and metal coin embossing.

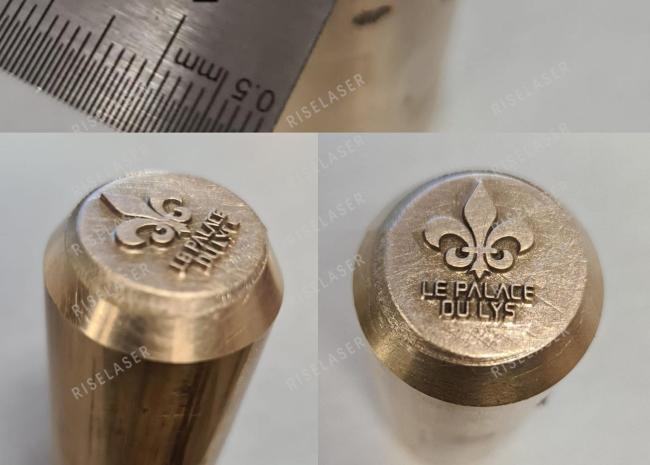

Sample display
3d fiber laser marking machine Parameters
| Product Name | 3d fiber laser marking machine | Cooling Mode | Air Cooling |
| Type | Small enclosed | Max Marking Speed | 7000mm/s |
| Laser Source | Raycus / JPT / IPG | Mininum Line Width | 0.015mm |
| Power | 30W/50W/ 60W/80W/100W | Mininum Character | 0.2mm |
| Laser Wavelength | 1064nm | Pulse Frequence | 30 KHz - 100 KHz (Raycus) |
| 1KHz - 4000KHz (JPT) | |||
| Marking Area | 110*110mm~300*300mm | Operation Environment | Working temperature: 0°-40°, Storage temperature: -10°-60°. Humidity: 30% - 85%. |
| Cooling Model | Air Cooling | Power Supply | AC110V /220V +10% / 50HZ or 60HZ |
| Control Card | EZCAD2 from BJJCZ | Operation System | Win XP / 7 / 8 / 10 (64 bits) |

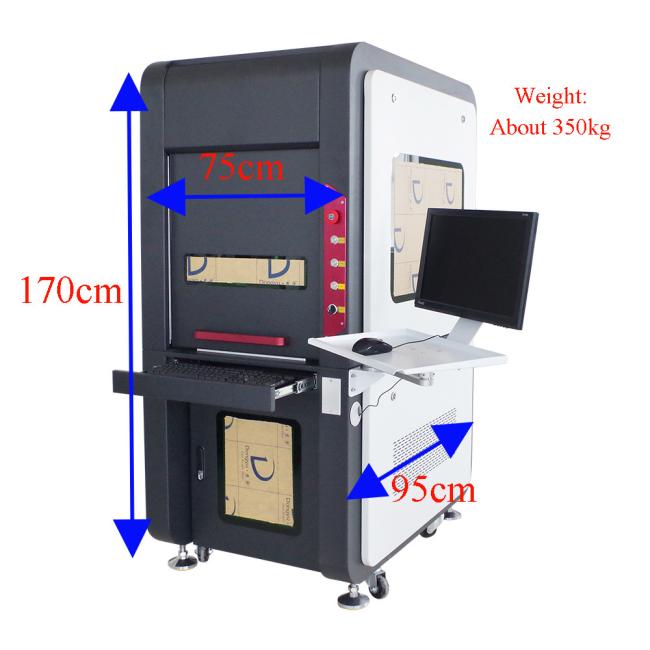

3d fiber laser marking machine Dimension
High-quality machine main parts as follows:
Laser source: Raycus JPT MAX IPG (optional)
Galvanometer: SINOGALVO Scanlab (optional)
Lens: Jollystar wavelength (optional)
FAQ
Q1. How to get the most suitable machine and the best price
Please tell me the material you want to process? How to deal with it? Engraving? Cutting? or others ?
What is the maximum size of these materials? (Length? Width? Thickness?
Q2. If we don't know how to use the machine, can you teach us?
Yes, we will do remote teaching and provide relevant teaching videos until you are familiar with using the machine
Q3. How about your after-sales service?
We provide you with a 24-hour service phone, Whatsapp or WeChat.
