Steel Metal Fiber Laser Marking Machine 20w Laser Engraver Marker
Steel Metal Fiber Laser Marking Machine 20w Laser Engraver Marker
Simple operation

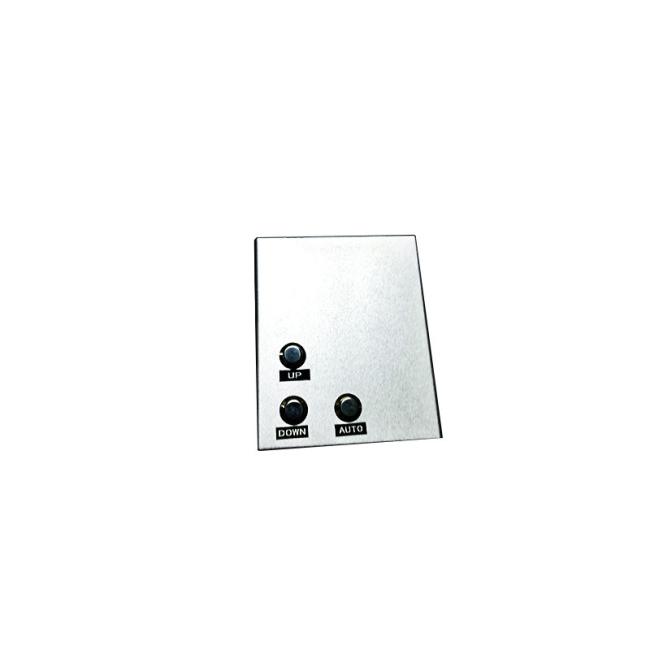

The auto focus power is integrated above the galvanometer for easy operation
High precision
With perfect marking effect, it can make precise patterns on the tiny surfaces of most metals and some non-metals. No consumables, simple operation.
High electro-optical conversion efficiency
The energy coupling loss is small, the operating cost is saved, the service life is long, and it is maintenance-free for 100,000 hours.
Imported laser source
Original imported laser source from German IPG or China JPT, Raycus provides high-quality laser beam for marking.
Machine details
Fiber Laser Marker Specification
|
Parameter table
|
|||
|
|
Power
|
20w/30w/50w
|
|
|
Laser brand
|
Raycus brand
|
||
|
Marking Area
|
110*110/150*150/200*200mm/300*300mm
|
||
|
Galvanometer
|
Sino-Galvanometer SG7110
|
||
|
Main performance parameters
|
Marking Speed
|
7000mm/s
|
|
|
Marking Depth
|
≤0.5mm
|
||
|
Minimum Line Width
|
0.012mm
|
||
|
Minimum Character
|
0.15mm
|
||
|
Repeated Precision
|
±0.003mm
|
||
|
Focus Spot Diameter
|
<0.01mm
|
||
|
Life-span of Fiber Laser Module
|
100 000hours
|
||
|
System Operation
|
Windows XP / W7--32/64bits / W8--32/64bits
|
||
|
|
Cooling Mode
|
Air cooling--Built-in
|
|
|
Voltage
|
220V or 110V
|
||
|
Communication Interface
|
USB
|
||
|
|
Package Dimension
|
780mm x 420mm x 770mm
|
|
|
Gross weight
|
56kg
|
||
Machine operation video
Packaging & Shipping
It is well packed with export standard wooden case.
5-7 days after received the deposit
Shipping by sea or by air
