Portable 20W 30W Desktop Fiber Laser Engraver Built In PC Touch Screen
Price:
Negotiable
MOQ:
1 SET
Delivery Time:
5-9 working days
Brand:
Riselaser
Product Description
Portable 20W 30W Desktop Fiber Laser Engraver Built In PC Touch Screen
- Simple installation
- Simple, compact, flexible and convenient
- The equipment is very cost-effective,
- Using high-quality fiber laser source,
- High stability galvanometer system,
- Built-in keyboard and mouse, hidden design
- Easily meet the most common laser marking applications.

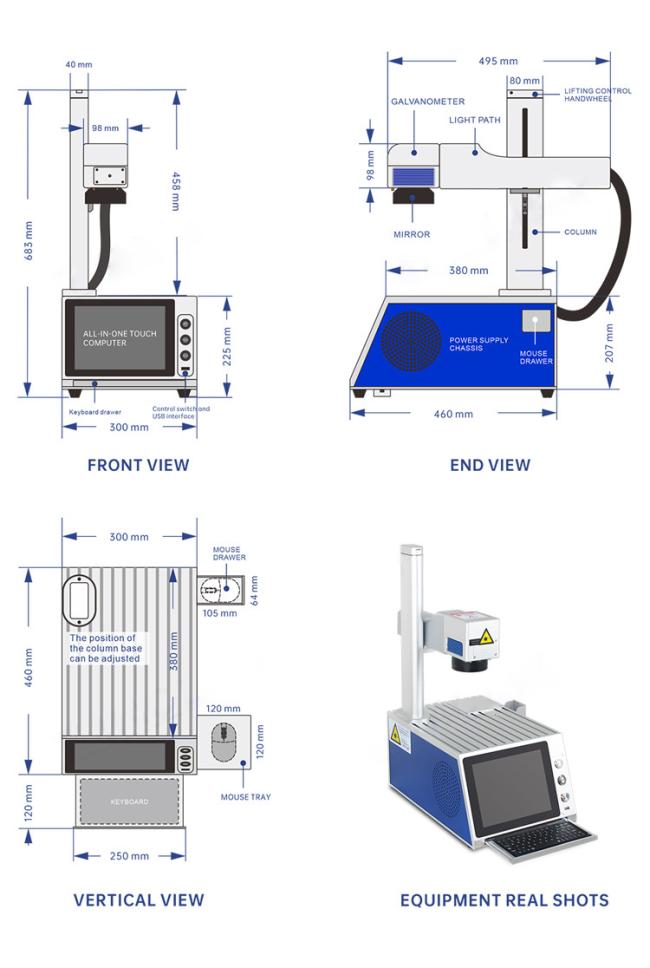

Fiber Laser Marking Machine Dimensions
Mini Laser Marking Machine Parameters
| Model series | Intelligent laser marking machine | ||
| Model | RL-20PI | RL-30PI | |
| Laser parameters | Laser source model | MAX 20W | MAX 30W |
| Output power | 18.5W | 30W | |
| Beam quality M² | ≤1.4 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | 30-60 kHz | |
| Laser wavelength | 1064±5 | ||
| Output power stability | <3% | ||
| Design life | About 100,000 working hours (non-service life) | ||
| Optical properties | Marking range | 100~150mm (range optional) | |
| Engraving depth | ≤1mm (depending on power and time) | ||
| Engraving speed | ≤10000mm/s | ||
| Repeat accuracy | ±0.002 | ||
| Mininum line width | 0. 1mm | ||
| Minimum character height | 0.15mm | ||
| Use environment | Cooling method | Built-in air cooling | |
| System power supply | 500W / 220V / 50Hz (110V can be connected) | ||
| Temperature, humidity | 0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range | ||
| Oil mist, condensation | Not allowed | ||
| Other parameters | Operating system | Windows operating system | |
| File format | All fonts/types of WINDOWS operating system font library (standard USB input) | ||
| Dimensions | 460X300X683 mm | ||
| Packing size | 550X440X690 mm | ||
| Total Weight | About 25kg | ||
Mini Laser Marking Machine Samples
