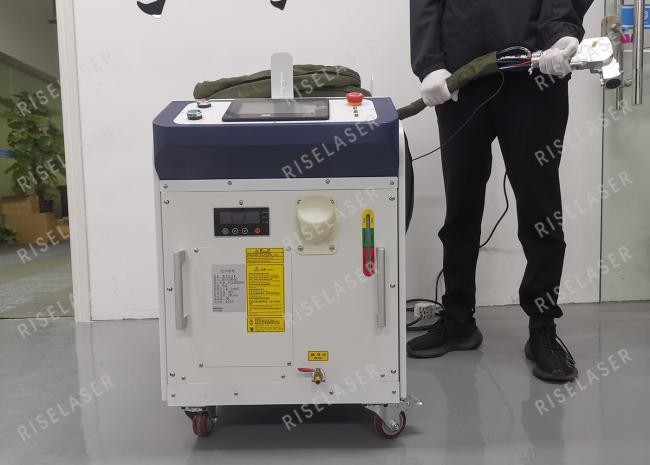

GW IPG Handheld Laser Welding Machine 15m Wire 1500W With Water Chiller
Handheld 3 in 1 laser welding machine price competitve 1500W for laser cleaning laser cutting

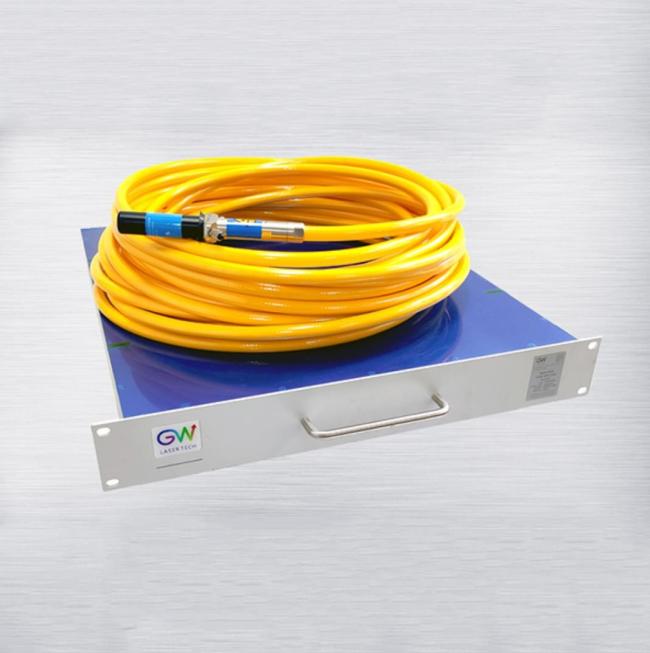

Laser source
High electro-optical conversion efficiency
high resistance
Output fiber length can be customized
Maintenance-free operation
Wide modulation frequency range
Laser head
With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device
Water cooling device
Built-in industrial chiller, no external chiller required
Built-in water temperature alarm function, safe production
Dual temperature dual control
Automatic wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm
Specification
| Laser Beam | 1500watt GW Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm |
| Cooling | Built-in Industrial Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 0.75kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 745*516*710mm |
| Weight | 160kg |
Product details
1. The welding speed is 4-10 times faster than traditional TIG/MIG welding
2. The operation is simple, no welding work permit is required, and unskilled operators can weld beautiful products
3. Metal products of different materials and thicknesses can be welded
4. The welding heat is low and the workpiece is not deformed
5. The welding seam is smooth and beautiful, reducing the subsequent grinding process, saving time and cost.
6. High speed cleaning
7. Flexible cutting
Welding sampels
Cleaning samples
