JPT M7 mopa fiber laser marking machine 20W for metal color marking

Main features

Laser power: 60W Marking area: 110 x 110mm. Maximum material thickness: 300mm


Laser source: MOPA JPT M7+; repetition rate frequency: 1-4000kHz; pulse duration: 2-500 ns; program: EZCAD has stable performance and high reliability. Compatible with Windows XP/Vista/7/8/10.


Advantage: Peel the anode from the surface of the thin alumina plate. Black anodized aluminum. Electronic application, semiconductor, ITO precision machining. Color markers on stainless steel.


Marking content: barcode, serial number, text, vector and logo. Application: Semiconductor and Electronics Industry


Delivery date: 7 days after order confirmed.

Remote assistance, customer service and technical support. The USB flash drive comes with an English user manual and a demo video. Machines quality fault can be returned.

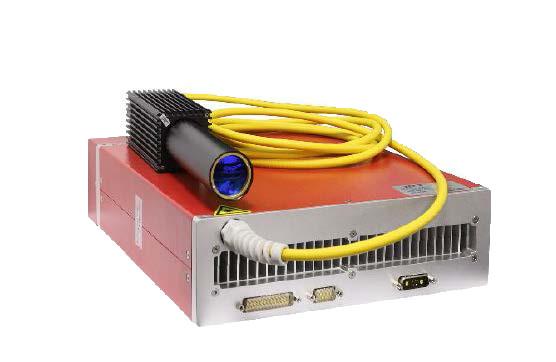

Laser source

JPT MOPA M7

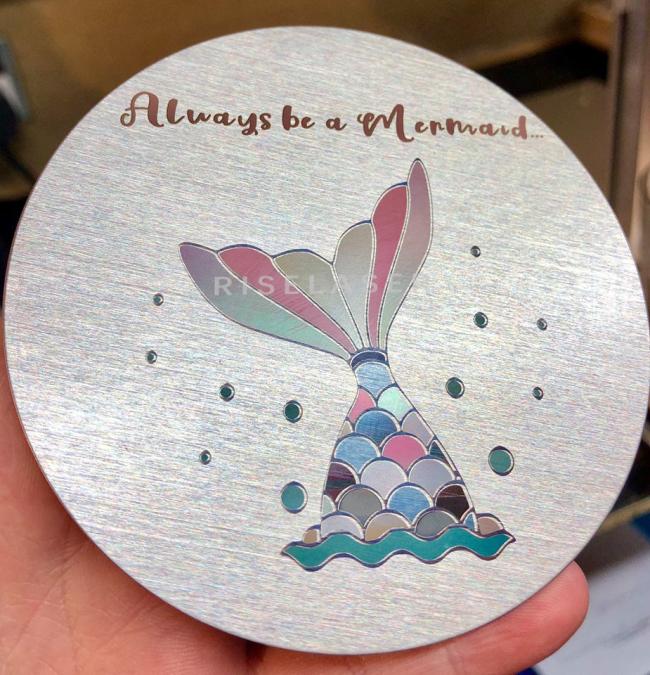

Samples

Technical data


More option for Main components of fiber laser marking and engraving machine:
Laser source: Raycus/JPT/IPG/MAX brand.
Original software: EZCAD 2.0
Laser power: 20W / 30W / 50W / 70W
Marking area: 110*110*60mm, 150*150*60mm, 200*200*80mm, 300*300*80mm.
Vibration lens: OV Laser OV8810 / Sino Galvo SG 2206 / Sino Galvo SG7220
Post stand: 50cm/68cm/80cm/100cm.
Available Rotary Fixtures: 69mm, 80mm, 100mm, 125mm, 160mm, 200mm, etc.
More optional parts: Vision Positioning Camera / Cyclops Camera / Transfer Stage / Purifier / Motorized XY Stage.

Machine application and advantages.

1) Under the operating system: Windows operating system


2) The software supports characters, numbers, serial numbers, date codes


3) Support multiple fonts. Such as TrueType, JSF (single line font), DMF (dot matrix font, 1D barcode, 2D barcode, etc.)


4) Support common picture types. (bmp, jpg, gif, tga, png, tif…)

5) Support common vector graphics. (ai, dxf, dst, plt…)

6) Flexible variable text: Change text in real time during laser processing. Excel data tables are supported.

7) Imported fiber laser system

8) Excellent optical mode, long service life, up to 100,000HS

9) The highest electro-optical conversion efficiency, up to 80%, but the total power is less than 600W

10) Small size, stable, maintenance-free and easy to operate

11) High precision, suitable for fine machining of all metals and some non-metals.

12) This machine adopts fiber laser, with high electro-optical conversion rate and good laser quality
The beam is good, and it is cooled by air cooling, which is smaller in size, lower in power, and more energy-saving.

13) The divergence angle is about a quarter of that of the pumped laser semiconductor, especially mainly used for precise and fine marking 3, low cost of use, and electro-optical conversion efficiency as high as 30%
